Component Locations

COMPONENT LOCATIONS

Component Location
Fuse Panel Below Left Side Of Instrument Panel
Power Antenna/Memory Seat In-Line Fuse In Left Side Of Trunk, Under Package Tray. See Fig 1 .
Power Distribution Box Left Side Of Engine Compartment, On Fender. See Fig 2 & Fig 3 .
System Ground (G300) Below Left Side Of Driver's Seat. See Fig 4 .
Fig 1: Locating Power Antenna/Memory Seat In-Line Fuse
G00106239Courtesy of FORD MOTOR CO.

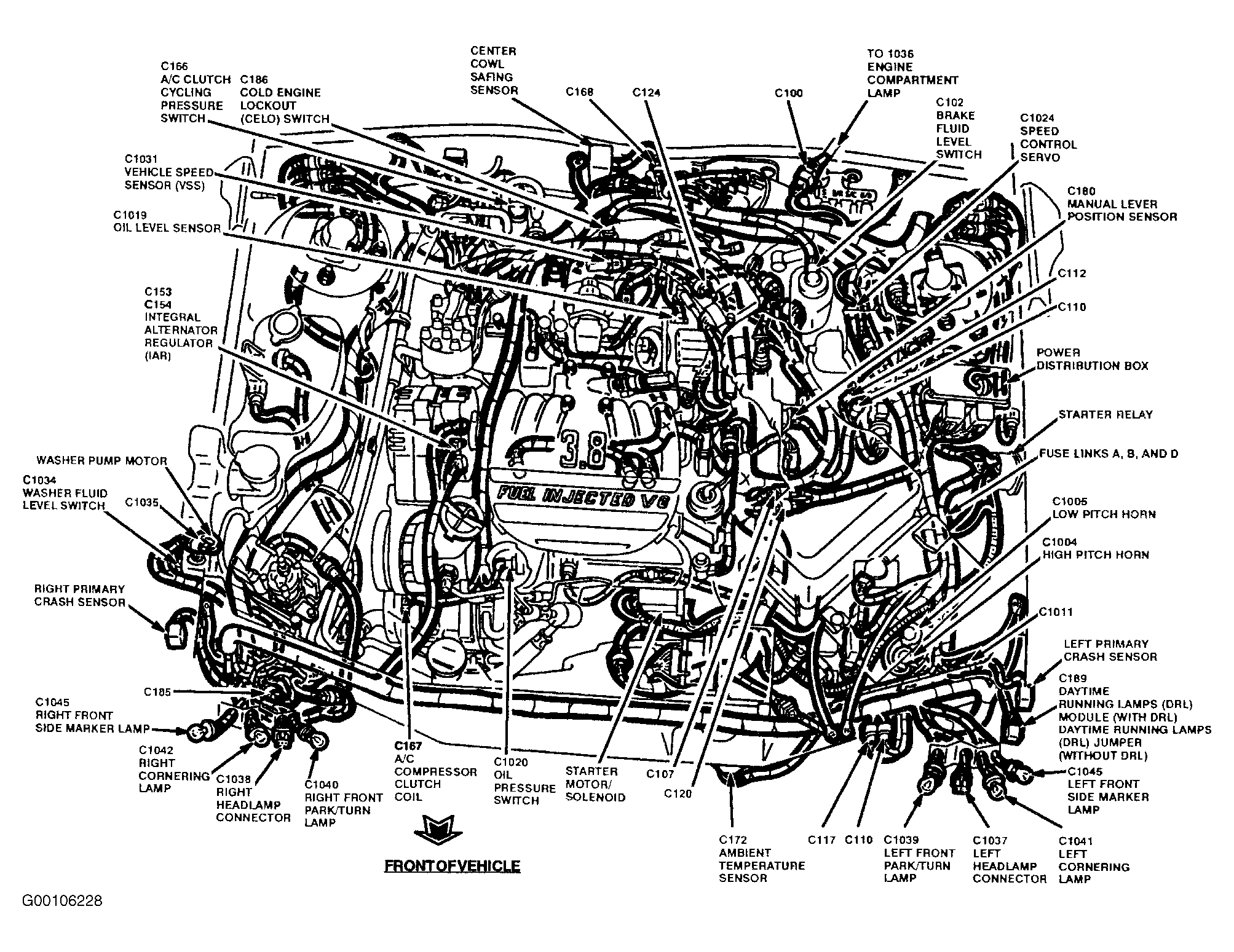

Fig 2: Locating Power Distribution Box
G00106228Courtesy of FORD MOTOR CO.
Fig 3: Identifying Power Distribution Box Fusible Links
G00130393Courtesy of FORD MOTOR CO.
Fig 4: Locating Power Seat Components & Ground (G300)
G00106229Courtesy of FORD MOTOR CO.
