Checking Riding Height

  1. Drive onto alignment rack. Turn ignition off. Level rack as necessary. Turn ignition switch to the RUN position (DO NOT start). Allow one minute for vehicle to level. Push trunk release, turn ignition off and exit vehicle.
  2. Allow 20 seconds for vehicle to vent to trim height (all doors closed). Turn off air suspension system switch in trunk on left front side panel. Check for proper riding height. See Fig 1 . Adjust as necessary.

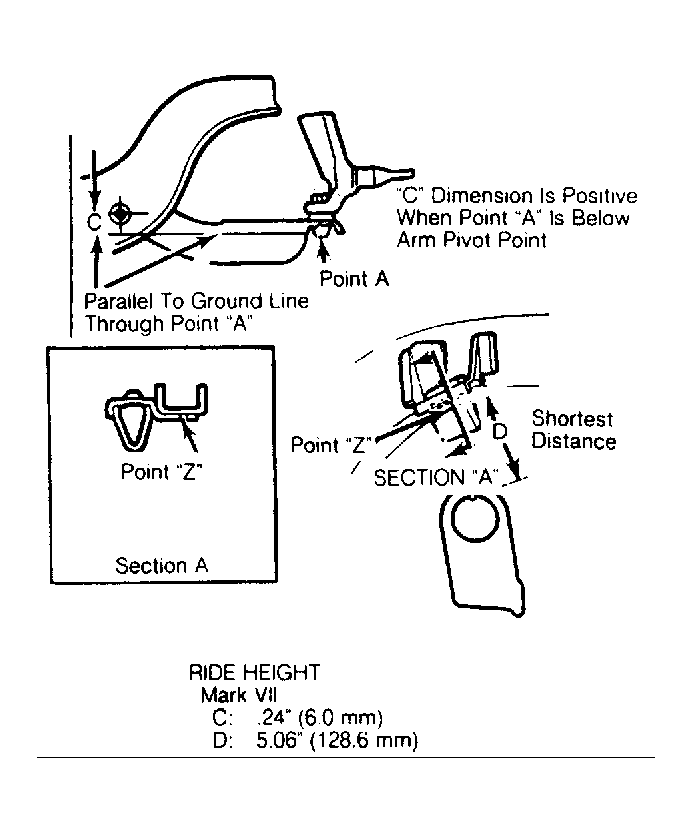

Fig 1: Checking Riding Height
G56536Courtesy of FORD MOTOR CO.
