Adjusting Riding Height

  1. Adjust front riding height by moving front left and/or right lower sensor attaching stud. There are 3 adjustment positions provided on bracket. Loosen attaching bolt and adjust as necessary. A one position change to sensor attachment point will result in 1/2" (12.7 mm) change, up or down. See Fig 1 .

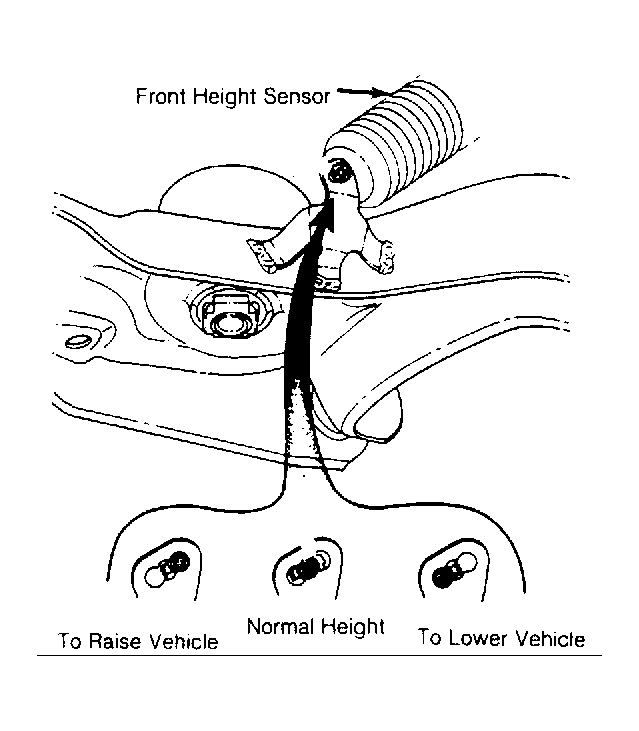

    Fig 1: Adjusting Front Riding Height
    G56537Courtesy of FORD MOTOR CO.
  2. Rear suspension riding height is adjusted by moving rear sensor attaching bracket up or down relative to right rear arm (slot adjustment is provided on bracket).
  3. Loosen attaching nut and adjust up or down as required. One index mark change to sensor attachment point will result in 1/4" (6.4 mm) change up or down. See Fig 2 .

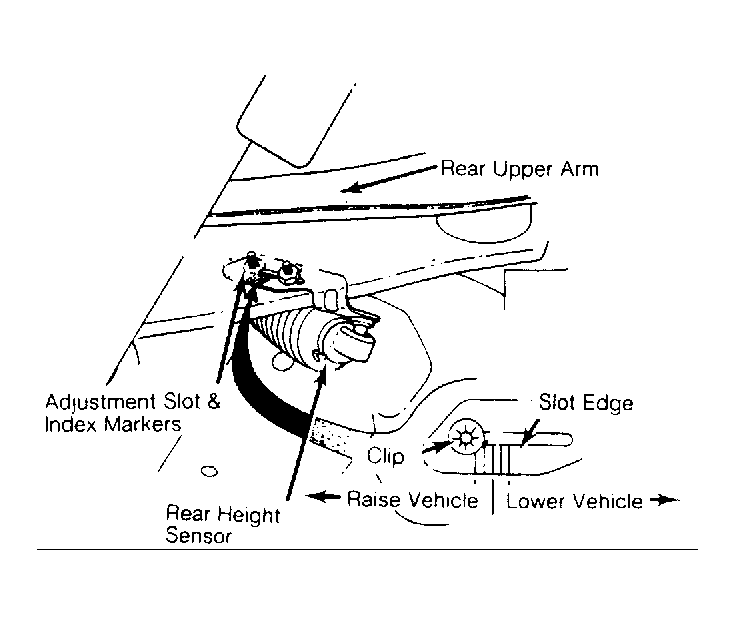

Fig 2: Adjusting Rear Riding Height
G56538Courtesy of FORD MOTOR CO.
