Fast Idle Cam Adjustment

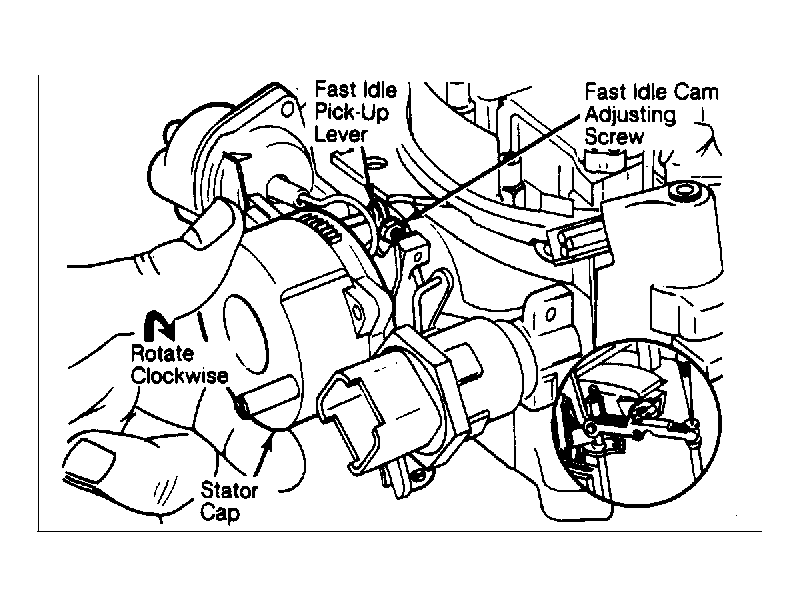

- Position fast idle lever on 2nd step of fast idle cam. Install stator cap and rotate clockwise until fast idle lever contacts fast idle cam adjustment screw. Dial indicator reading should be 0.360" (9.14 mm).
- If adjustment is necessary, rotate fast idle cam adjustment screw. Remove stator cap. Assemble choke cap, gasket, and retainer with breakaway screws. Remove dial indicator and rubber band. See Fig 1 .
