Service Indicator & Warning Lights: Notes

NOTE: Warning lights on some vehicles are on separate clusters. The message center on one of the electronic panels replaces several of the warning lights.

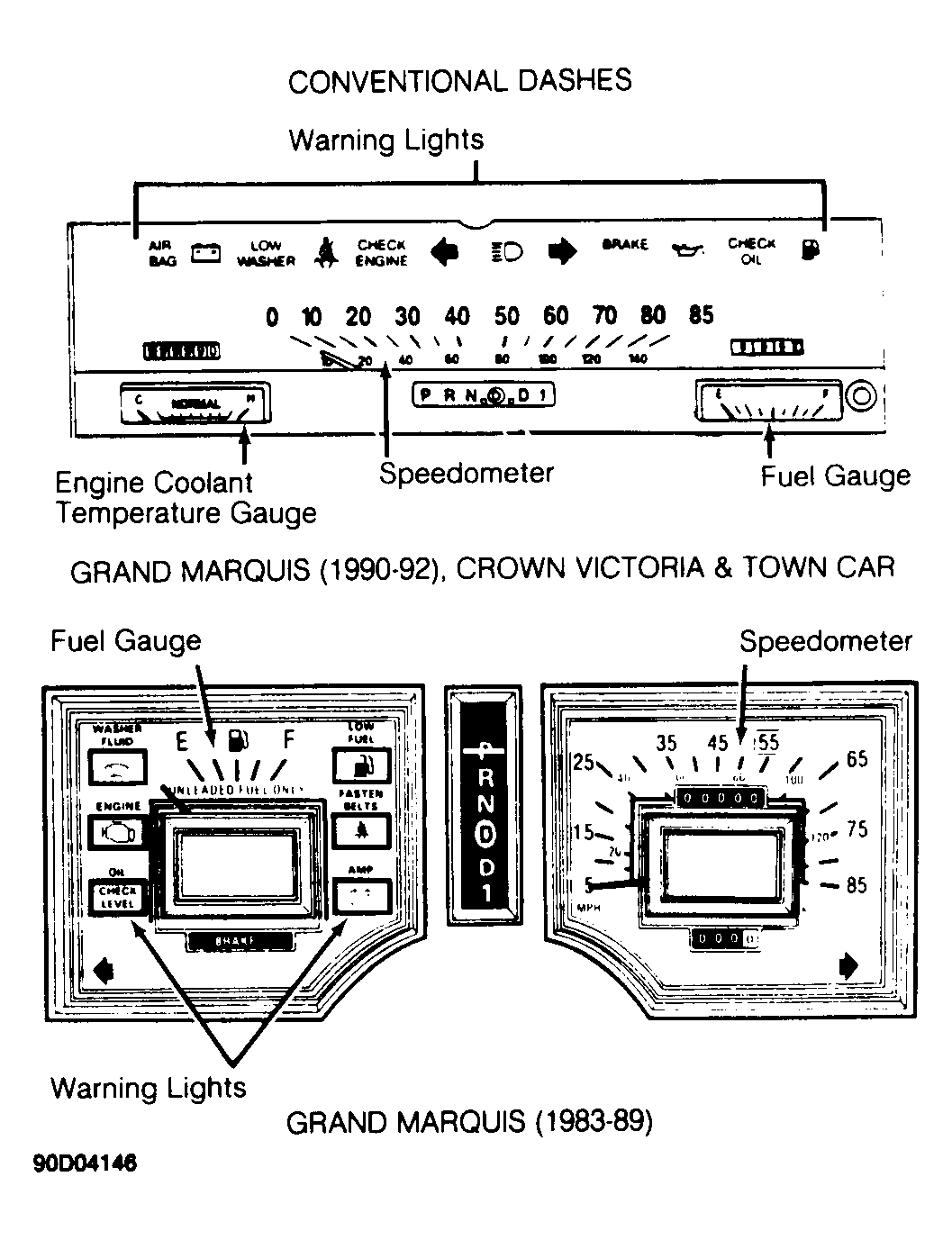

Fig 1: Conventional Dash Gauges & Warning Lights

Courtesy of FORD MOTOR CO.

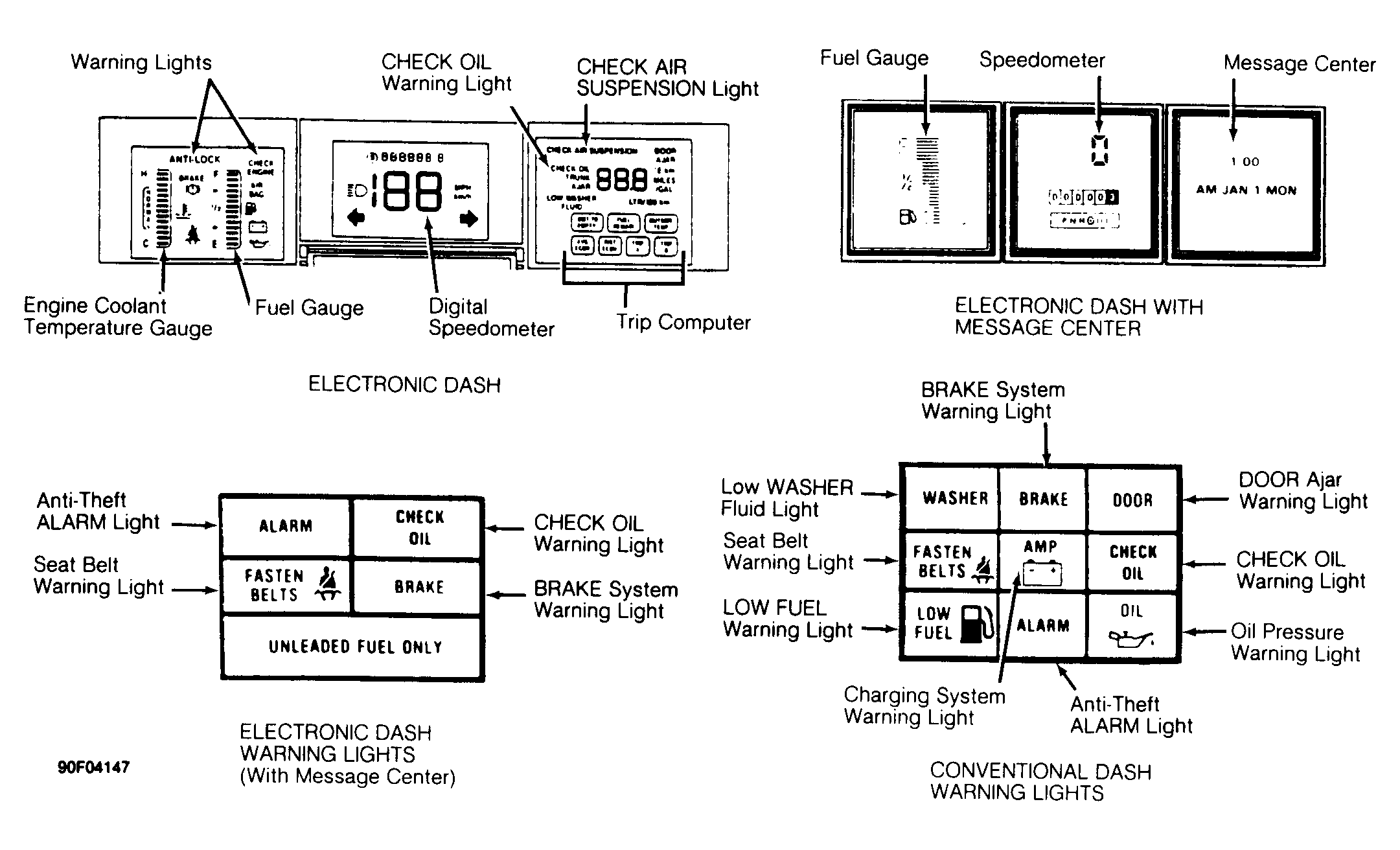

Fig 2: Electronic Dash Gauges & Warning Lights

Courtesy of FORD MOTOR CO.
