Ride Height - Models With Air Suspension

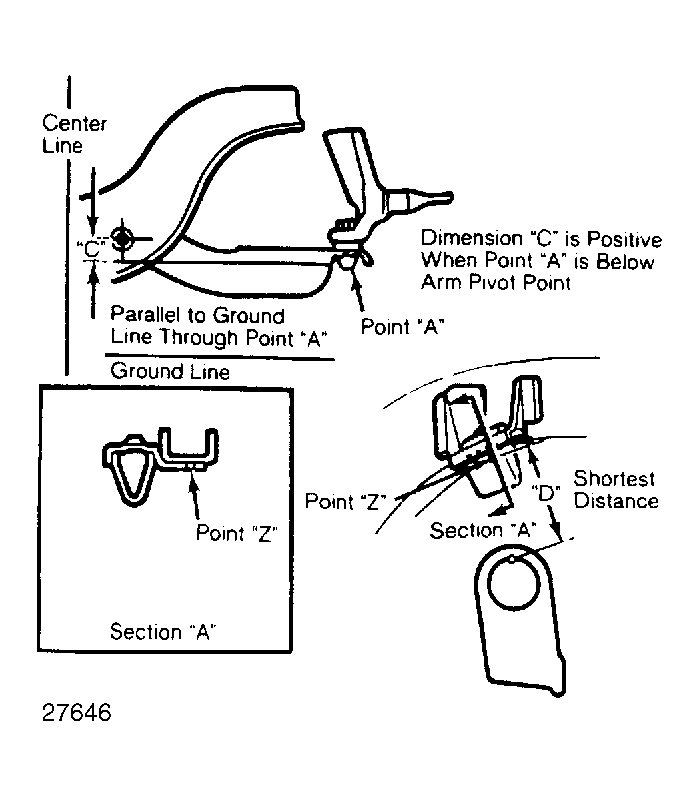

- Perform PRE-ALIGNMENT CHECKS . Check front suspension ride height with vehicle on level surface. Measure dimension "C". See Fig 1 . If necessary, adjust front ride height by moving front left and/or right lower sensor attaching stud.
- There are three adjustment positions provided on bracket. Loosen attaching bolt and adjust as necessary. A one position change to sensor attachment point will result in 1/2" change up or down.
- Rear suspension ride height is adjusted by moving rear sensor attaching bracket up or down relative to right rear arm (slot adjustment is provided on bracket). Loosen attaching nut and adjust up or down as required. One index mark change to sensor attachment point will result in 1/4" change up or down.
RIDING HEIGHT (CONTINENTAL & MARK VI)
| Application | In. (mm) |
|---|---|
| Front | + .24 (6.0) |
| Rear | 5.06 (128.6) |
