Anti-Lock Brake System Light

The ANTI-LOCK brake system light indicates the status of the anti-lock brake system. If the light stays on for more than 60 seconds while driving, stop the vehicle, turn off the engine and restart. If the light continues to glow, have the anti-lock brake system checked as soon as possible.

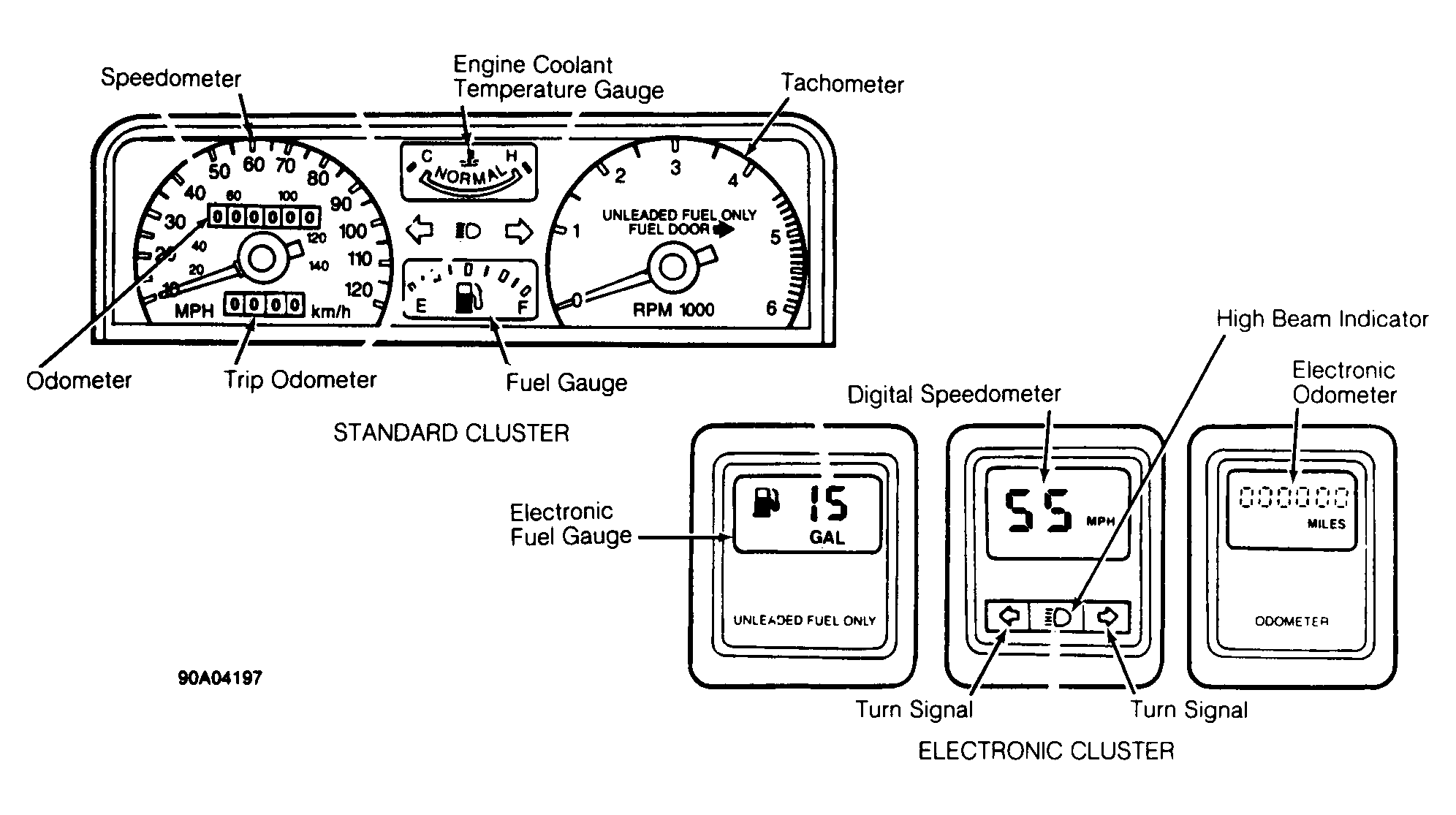

Fig 1: Dash Gauges & Warning Lights
G90A04197Courtesy of FORD MOTOR CO.
