Wiring Diagrams

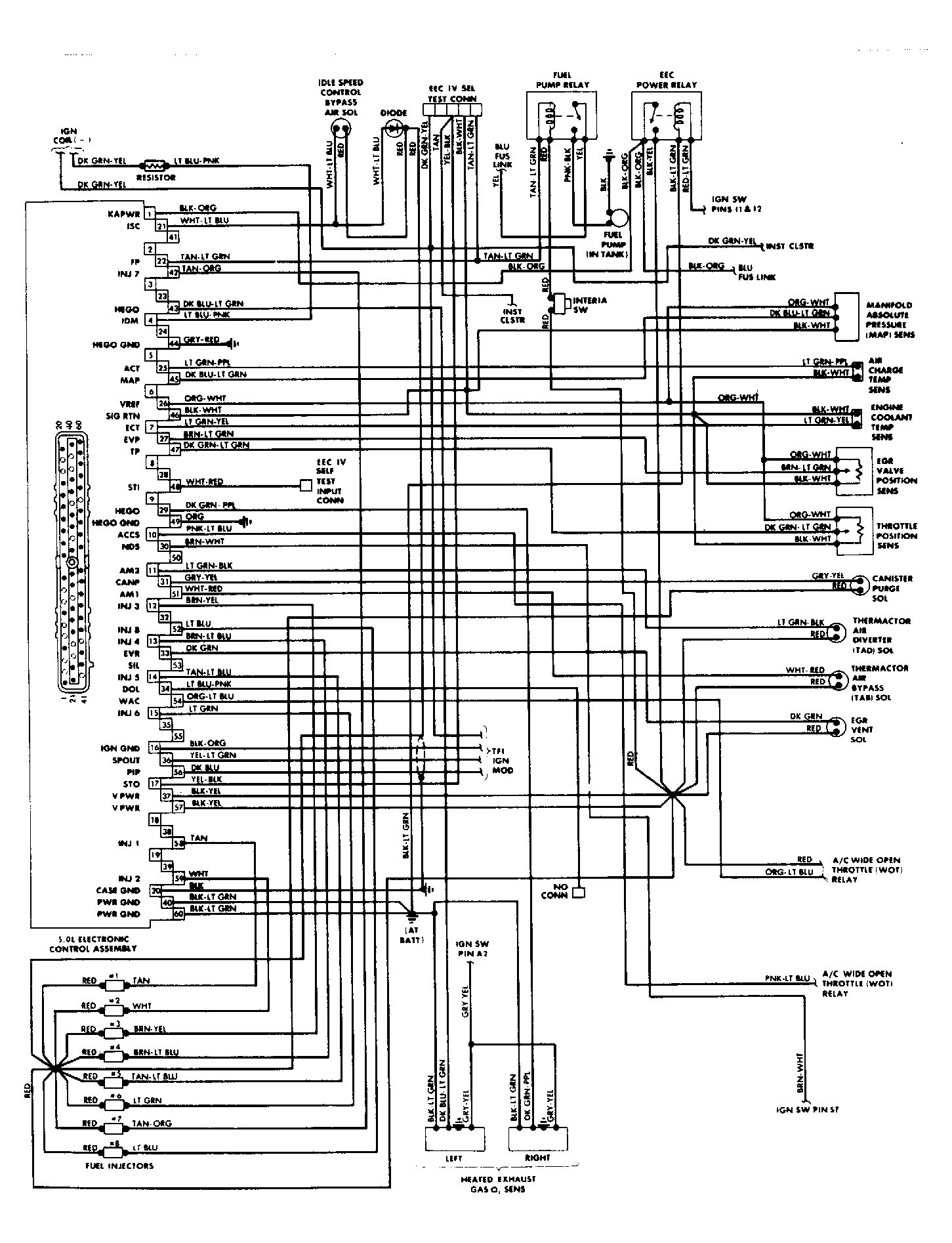

Fig 1: 5.0L SEFI EEC-IV Wiring Diagram (Continental & Mark VII)

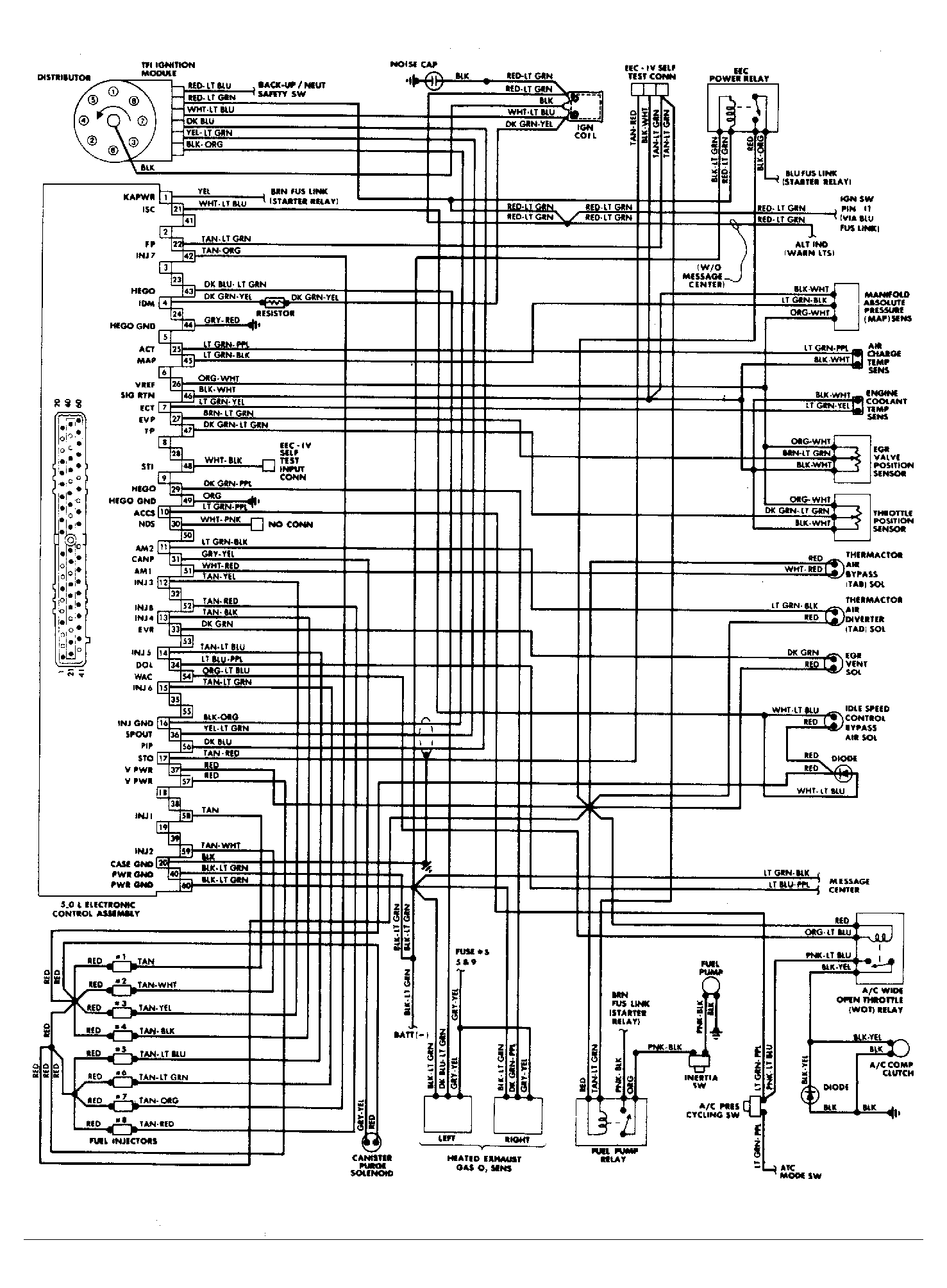

Fig 2: 5.0L SEFI EEC-IV Wiring Diagram (Cougar & Thunderbird)

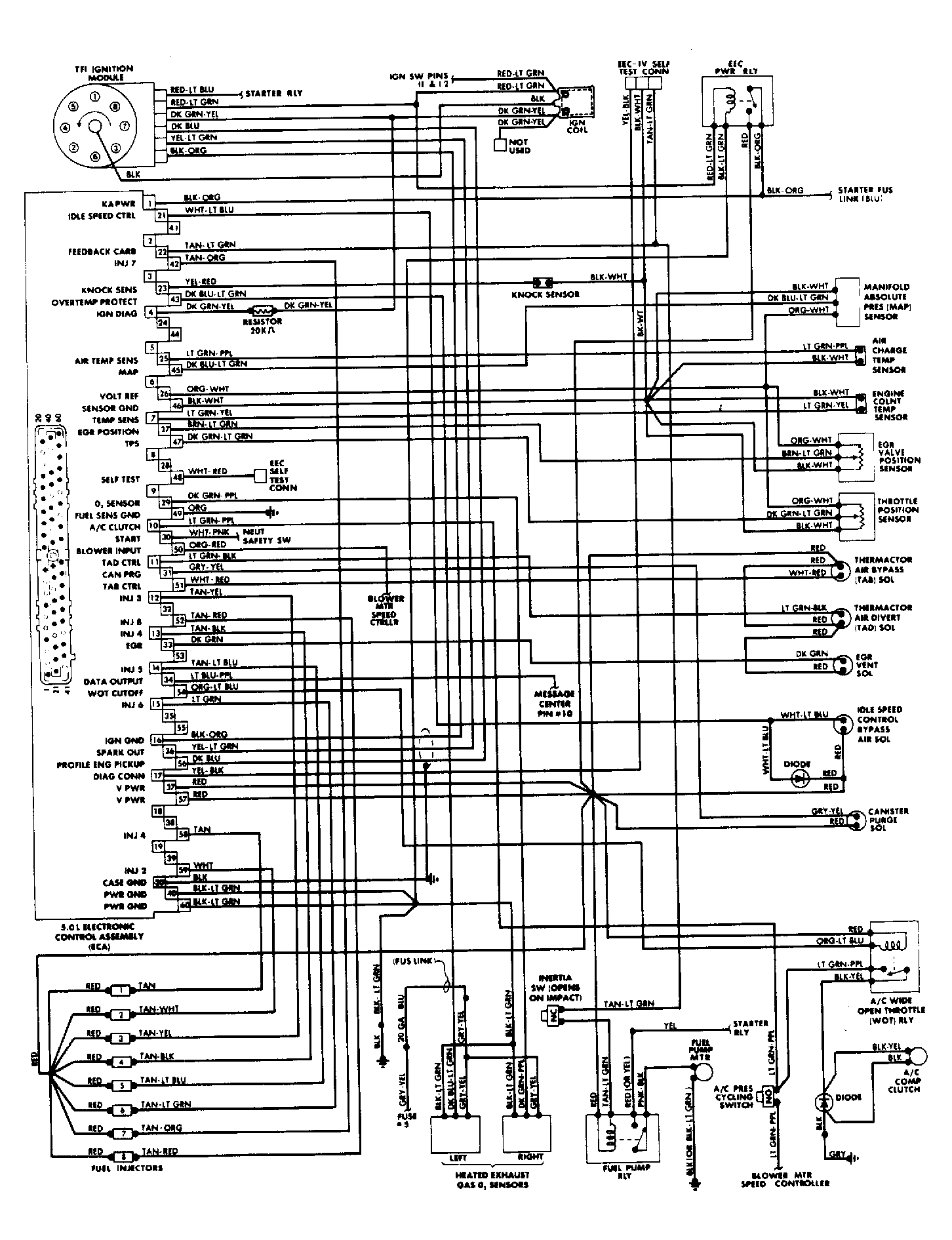

Fig 3: 5.0L SEFI EEC-IV Wir Diagram (Crown Victoria & Grand Marquis)

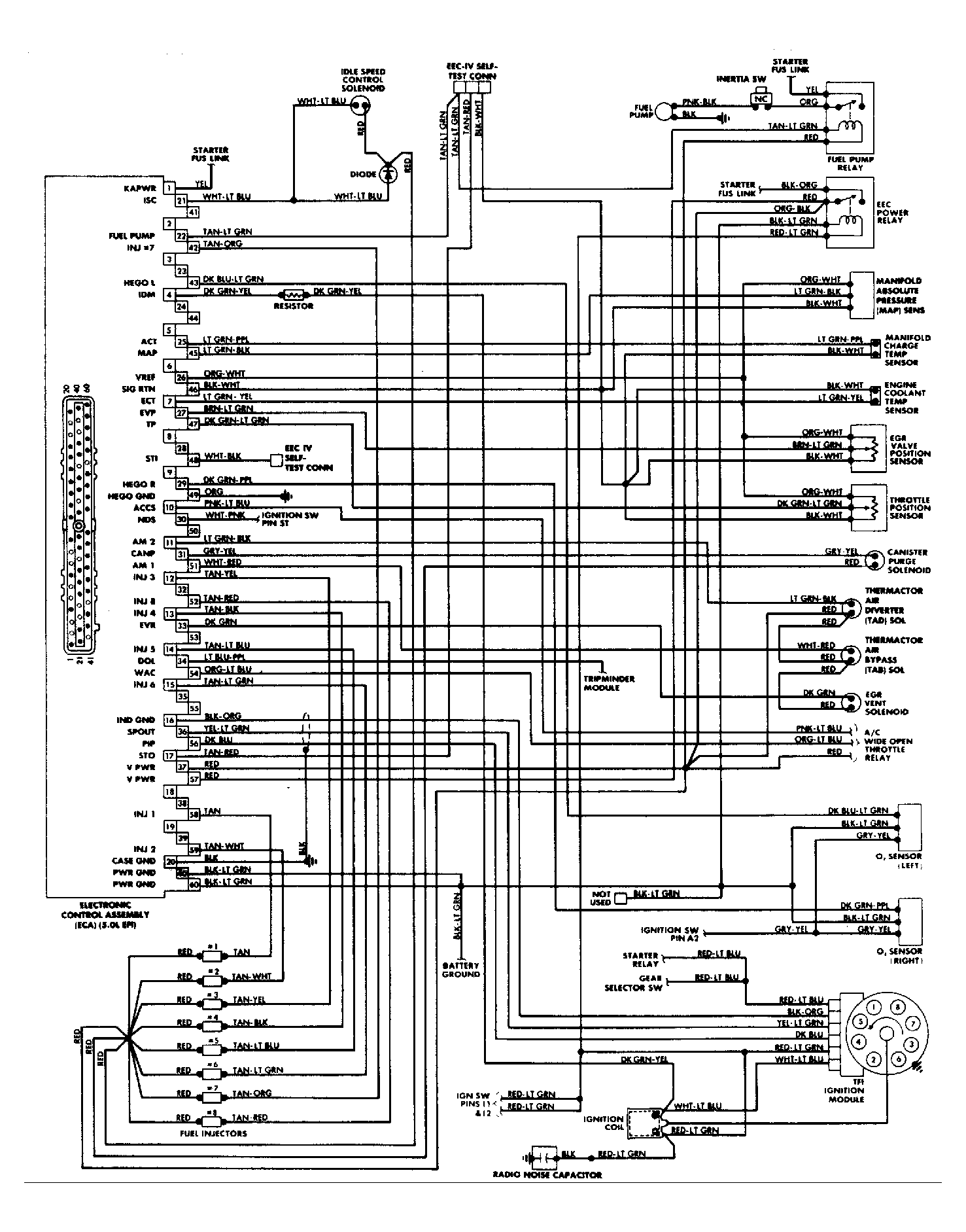

Fig 4: 5.0L SEFI EEC-IV Wiring Diagram (Mustang)

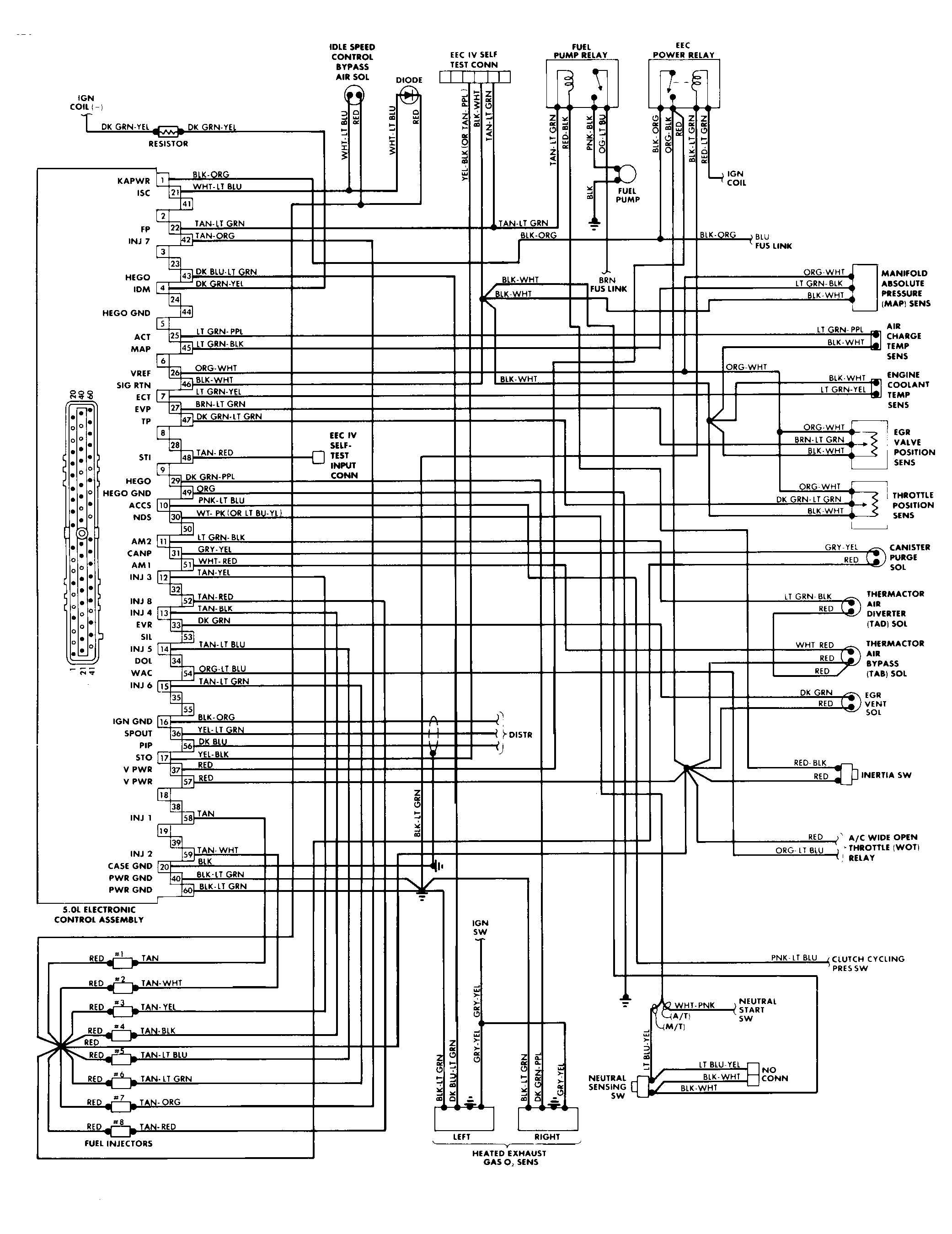

Fig 5: 5.0L SEFI EEC-IV Wiring Diagram (Town Car)
