Connector & Sensor Identification

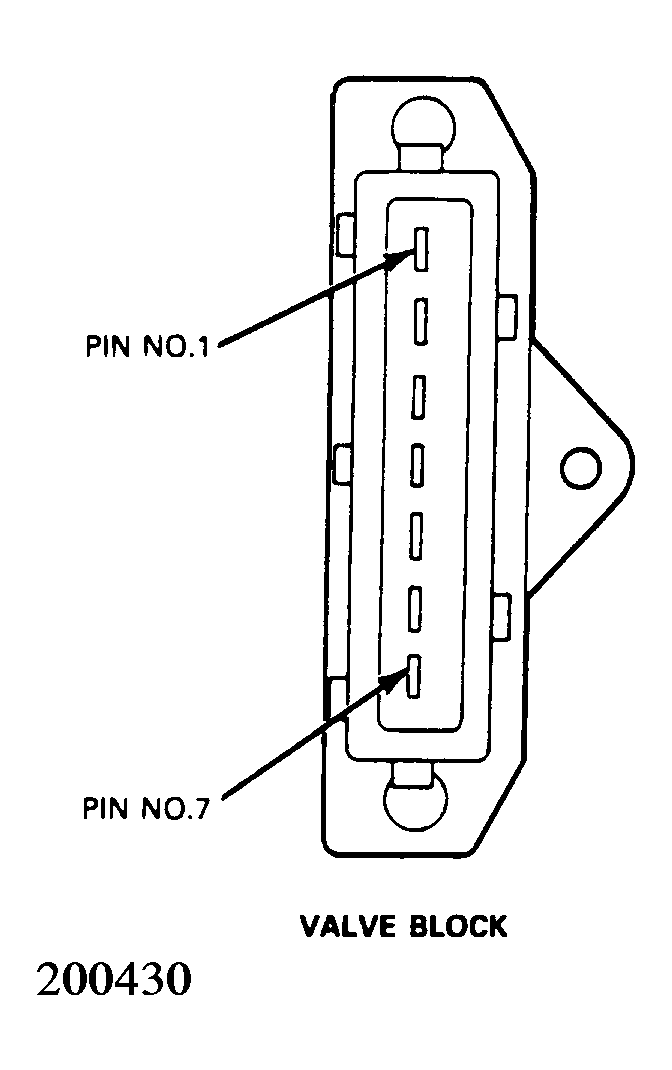

Fig 1: 7-Pin Valve Block Terminal Pin ID

Courtesy of FORD MOTOR CO.

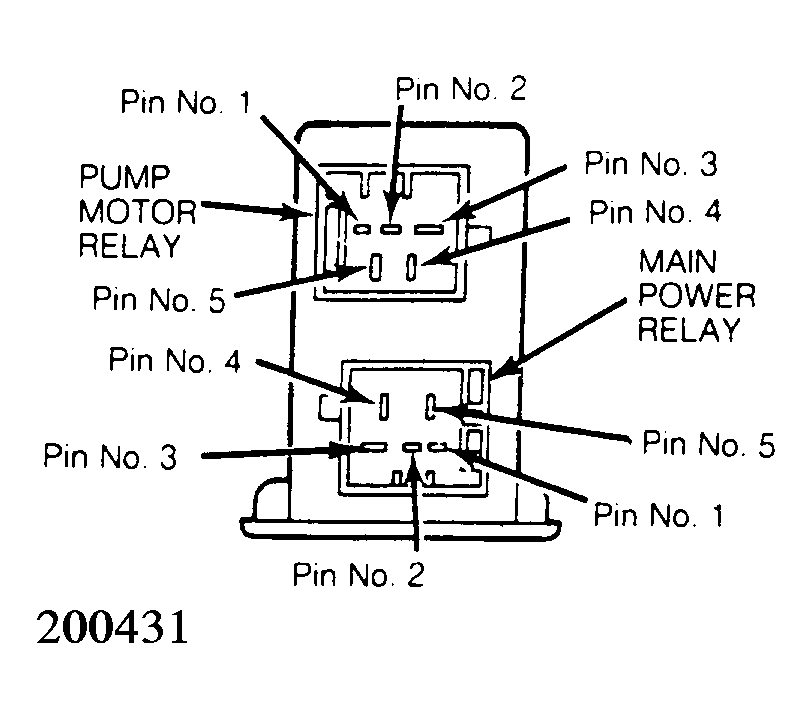

Fig 2: Main Relay & Pump Motor Relay Terminal Pin ID

Courtesy of FORD MOTOR CO.

Fig 3: Main Relay & Pump Motor Relay Connector Pin ID

Courtesy of FORD MOTOR CO.

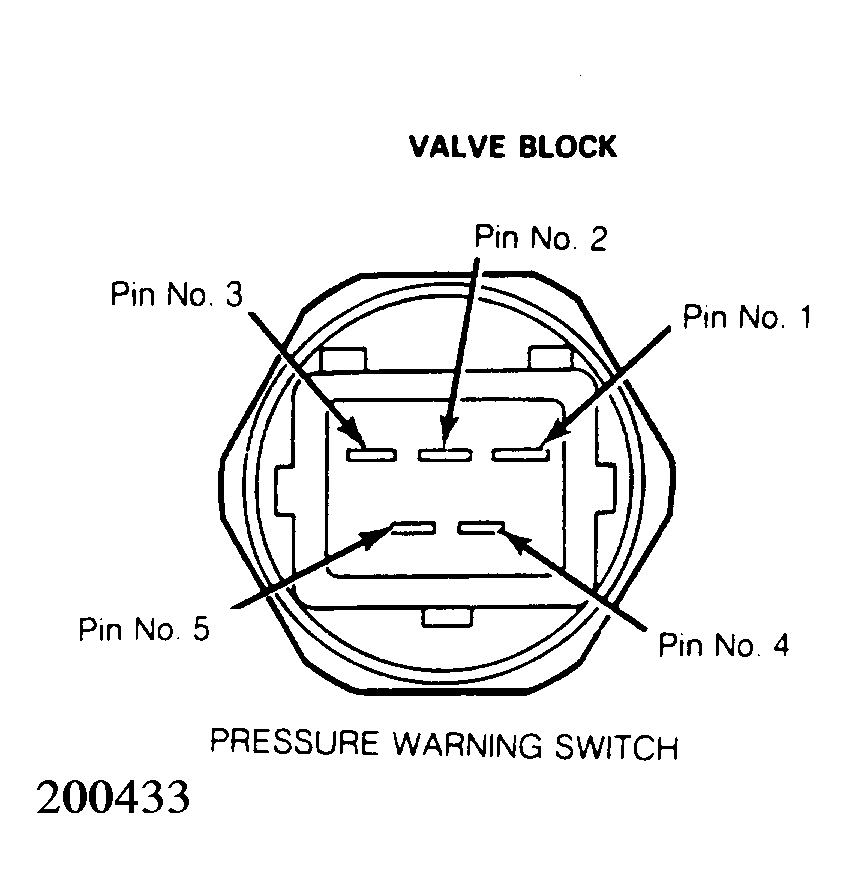

Fig 4: Pressure Warning Switch Terminal Pin ID

Courtesy of FORD MOTOR CO.

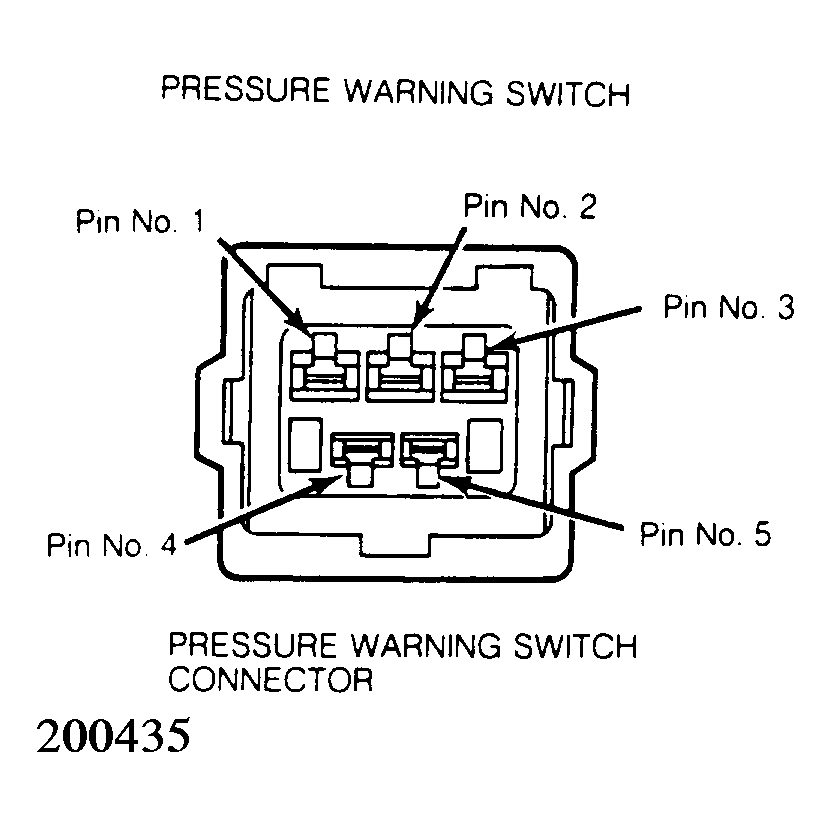

Fig 5: Pressure Warning Switch Connector Pin ID

Courtesy of FORD MOTOR CO.

Fig 6: Main Valve Terminal Pin ID

Courtesy of FORD MOTOR CO.

Fig 7: Fluid Level Indicator Terminal Pin ID

Courtesy of FORD MOTOR CO.

Fig 8: Fluid Level Indicator Connector Pin ID

Courtesy of FORD MOTOR CO.

Fig 9: 2-Pin Motor Connector Pin ID

Courtesy of FORD MOTOR CO.

Fig 10: Brake Reservoir Warning Switch Terminal Pin ID

Courtesy of FORD MOTOR CO.
