Seats - Power: Testing: Switches
NOTE:
Testing of both seat-mounted and arm rest-mounted switches is detailed in Figs.
Fig 1
and
Fig 2
.

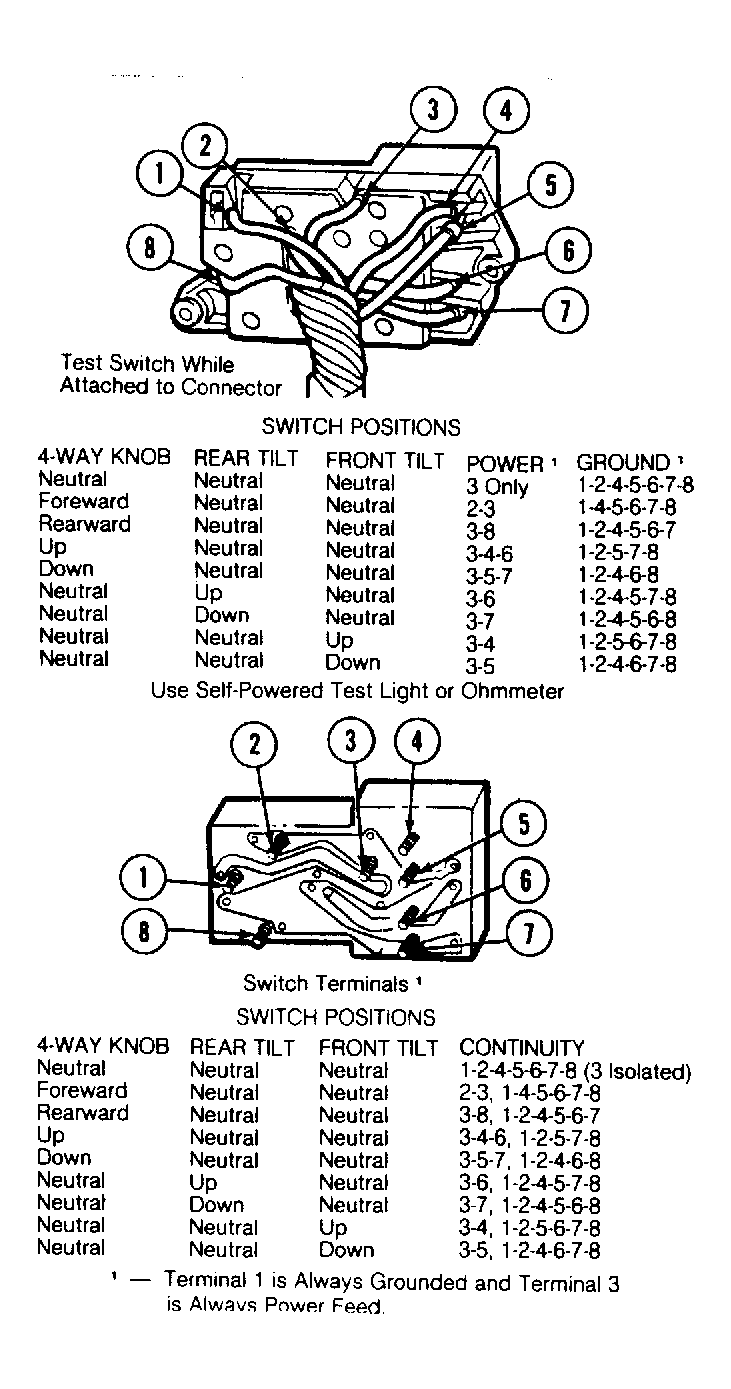

Fig 1: Terminal Identification and Switch Test for Arm Rest Mounted Switches
Fig 2: Terminal Identification and Switch Test for Seat Mounted Switch
