Sensor Amplifier

Remove instrument panel top pad by removing screws at either end and below front edge. Lift off top pad and remove 2 screws holding sensor amplifier to instrument panel. Remove connector. Reverse removal procedure to install sensor amplifier.

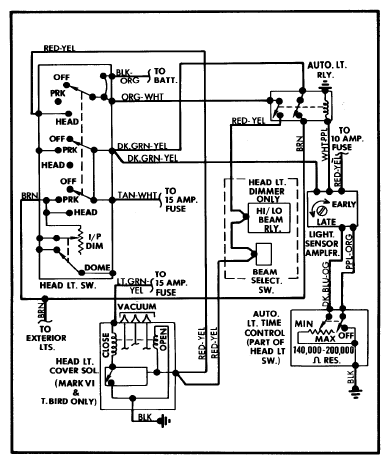

Fig 1: Autolamp Wiring Diagram (All Models)
G09358733Courtesy of FORD MOTOR CO.
