EGR Cooler Assembly

An EGR gas cooler is used to reduce EGR gas temperature, thus providing improved flow characteristics, better engine operation and EGR valve durability.

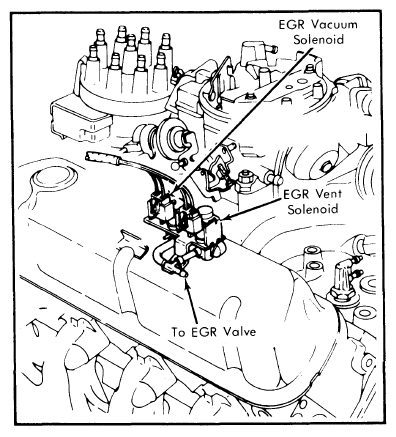

Fig 1: Dual EGR Control Solenoids

Courtesy of FORD MOTOR CO.
