EEC Equipped Engines

Check that all 4 lobes on pulse ring are not damaged. Check mechanical advance with timing light, from idle to 2500 RPM. Check that gap between damper sensor and pulse ring does not exceed 0.075".

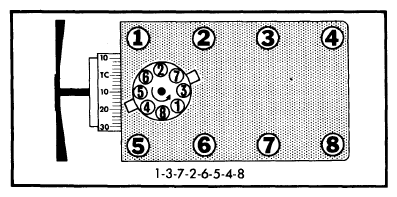

Fig 1: 351" W Firing Order and Timing Marks
G09342824Courtesy of FORD MOTOR CO.
