Starter Cranking Circuit Tests: Notes

Before performing tests, remove and ground coil secondary wire (disconnect at distributor). Place transmission in neutral or park and apply parking brake. Be sure battery is fully charged. When making voltmeter connections, be sure to connect leads to battery posts or threaded terminals and not just to cable ends.

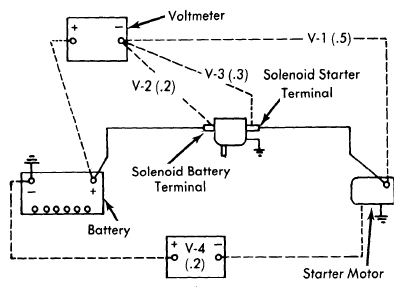

Fig 1: Starter Cranking Circuit Test Connections
G09346921Courtesy of FORD MOTOR CO.
