Wiring Diagrams

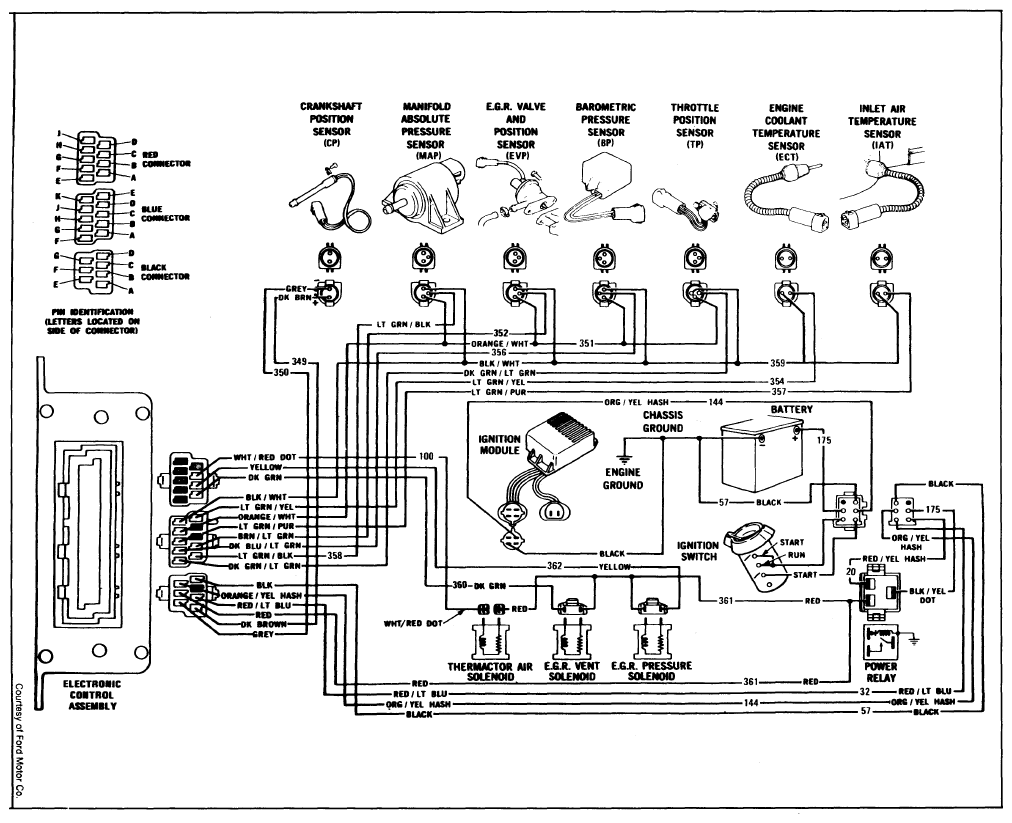

Fig 1: Electronic Engine Control I System Wiring Schematic

G09354719

Courtesy of FORD MOTOR CO.
