Tilt Mechanism Installation

To install, reverse removal procedure and note the following: New screws and clips must be used whenever mechanism has been disassembled. Replace all faulty or broken parts.

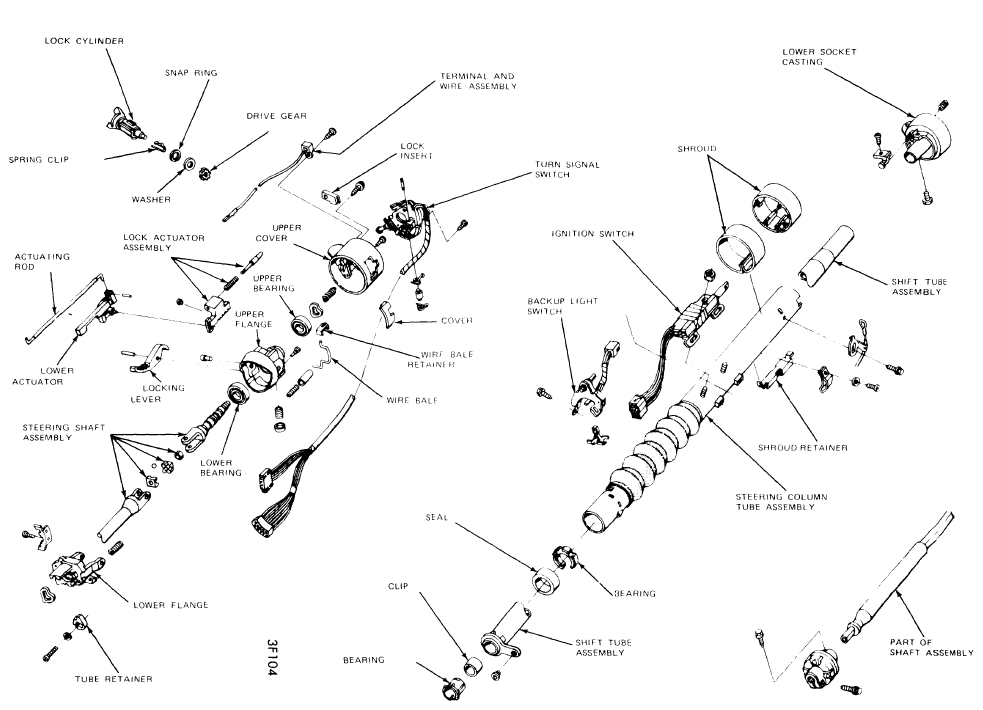

Fig 1: Typical Tilt Column Disassembled
G09347770Courtesy of FORD MOTOR CO.
