Caution All Models (1970-73)

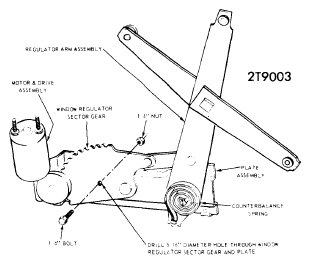

After removing regulator and motor from vehicle, mount assembly in vise and drill a 5/16" hole in the regulator sector gear and the regulator plate. Install a 1/4" bolt and nut in the hole. This MUST BE done to prevent gear from moving when the motor and drive assembly is removed from regulator. This also will prevent the chance of personal injury.
NOTE:
To remove window without having to remove regulator, obtain suitable template showing location of three motor and drive mounting bolts behind inner door panel. Template may be used for either door by reversing it, use template as follows:
- Remove trim panel and watershield. Properly position template on door and center-punch location of mounting bolts. Raise glass to UP position. With pilot drill as short as possible (1/4"), drill three holes at the center-punched points with a 3/4" hole saw.
- Remove motor support bracket and wires. Working through 3/4" holes, remove the three motor and drive to regulator screw. Remove motor and drive assembly.
