Caution All Models (1970-73)

After removing regulator and motor from vehicle, mount assembly in vise and drill a 5/16" hole in the regulator sector gear and the regulator plate. Install a 1/4" bolt in hole. This must be done to prevent gear from moving when motor and drive assembly are removed from regulator. This will also prevent the chance of personal injury.

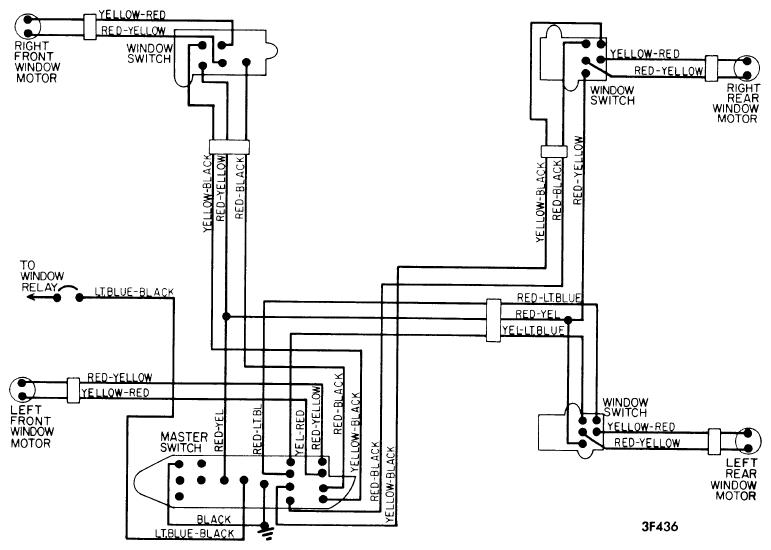

Fig 1: 1970 Power Window Wiring Diagram Ford & Mercury

Courtesy of FORD MOTOR CO.

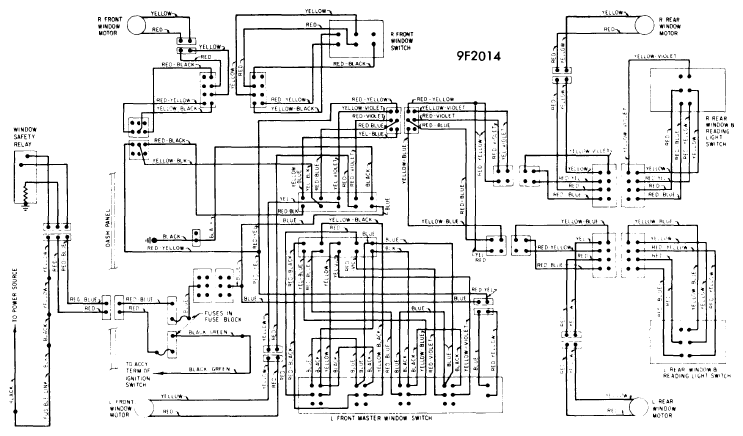

Fig 2: 1970-72 Power Window Wiring Diagram Lincoln Continental

Courtesy of FORD MOTOR CO.

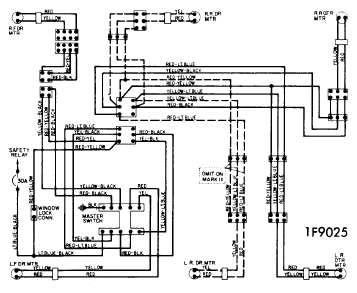

Fig 3: 1971-72 Power Window Wiring Diagram Mark III, IV & Thunderbird

Courtesy of FORD MOTOR CO.

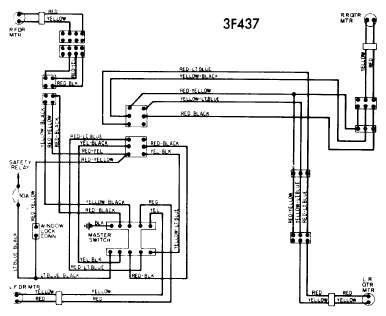

Fig 4: 1973 Power Window Wiring Diagram Mark IV & Thunderbird

Courtesy of FORD MOTOR CO.

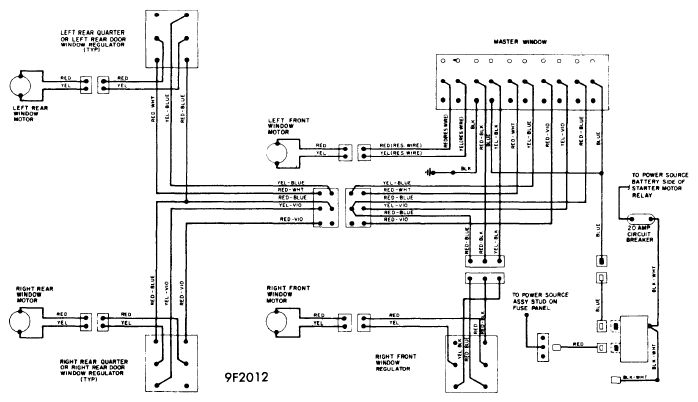

Fig 5: 1973 Power Window Wiring Diagram Lincoln Continental

Courtesy of FORD MOTOR CO.
