Solenoid Leakage Test

Connect ohmmeter between system ground plug sleeve (black) and solenoid high (red) (See illustration  ). If ohmmeter reading is below 1000 ohms, actuator coil or solenoid high (red) is shorted to ground.

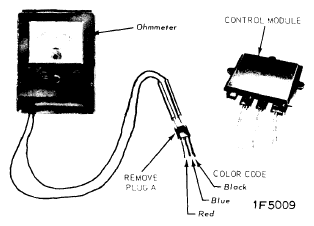

Fig 1: Solenoid Leakage Test
G09333103Courtesy of FORD MOTOR CO.
