1969 All Models: Replacement

Remove suction line fitting, EPR (or ETR) valve and O-ring from compressor by rotating counterclockwise slightly, using suitable tool (similar to Chrysler Tool No. C-3822, EPR valve; C-3301A, ETR valve). To install reverse removal procedure.

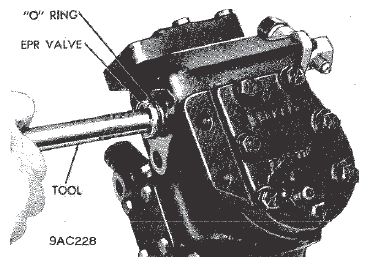

Fig 1: Removing The EPR Valve
G09310666Courtesy of CHRYSLER GROUP, LLC
