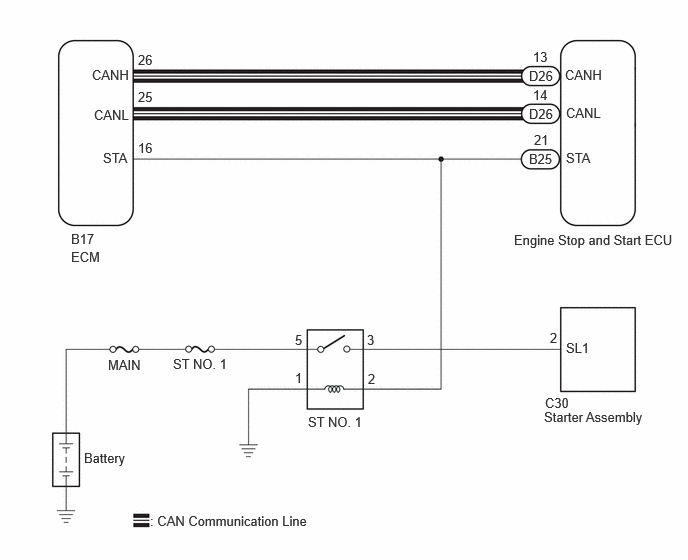

STA Signal Circuit [09/2023 - ]: Wiring Diagram

GTY1228783

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
