Removal [11/2021 - ]: Procedure

Refer to REMOVAL [11/2021 - ]

NOTE: Remove the steering sensor from the spiral cable sub-assembly only when replacing the spiral cable sub-assembly or the steering sensor. Removing the steering sensor from the spiral cable sub-assembly without using a lock pin may result in the center position of the steering sensor becoming misaligned. Therefore, make sure to use the lock pin provided with a new spiral cable sub-assembly when removing the steering sensor from the spiral cable sub-assembly. When replacing the spiral cable sub-assembly: Refer to PROCEDURE - Step 10

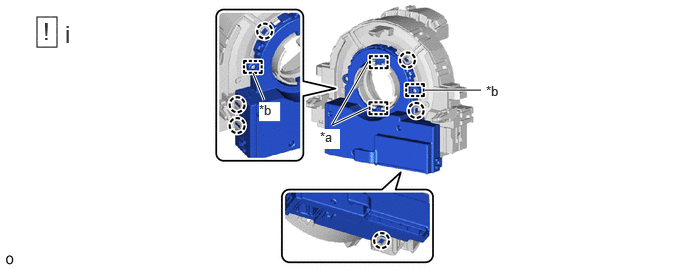

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Guide

   *b

   Pin

   1. Disengage the 6 claws, 2 guides and 2 pins, and remove the steering sensor from the spiral cable sub-assembly.
      NOTE:

      Do not damage the claws or pins of the spiral cable sub-assembly.
