DTC P2109-00: Throttle/Pedal Position Sensor "A" Minimum Stop Performance [12/2021 - ]: Procedure

1. Read the DTCs.

   Powertrain > Engine > Trouble Codes

   Result

   Result	Proceed to
   P2109-00 and other DTCs are output	A
   P2109-00 is output	B

   HINT:

   If any DTCs other than P2109-00 are output, troubleshoot those DTCs first.

Result:

A

GO TO DTC CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART [12/2021 - ]

Result:

B

See step  2

1. Using the GTS, check "Throttle Air Flow F/B Value" in the Freeze Frame Data.

   Powertrain > Engine > DTC (P2109-00) > Freeze Frame Data

   Tester Display
   Throttle Air Flow F/B Value

   HINT:

   Be sure to confirm "Throttle Air Flow F/B Value" in the Freeze Frame Data as it is used when confirming whether the malfunction has been successfully repaired.

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  3

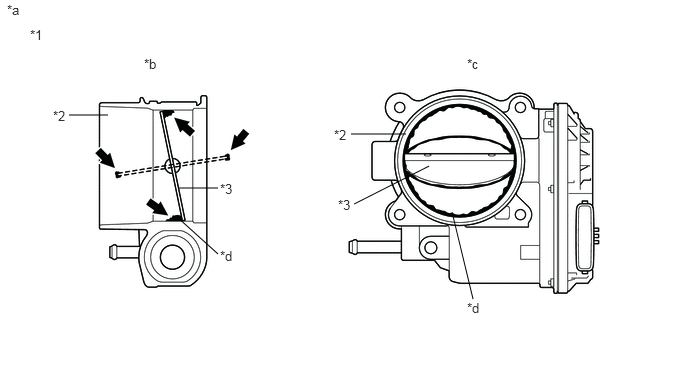

1. Check for foreign matter between the throttle valve and the housing.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Throttle Body with Motor Assembly	*2	Bore
   *3	Throttle Valve	-	-
   *a	Reference	*b	Throttle Body with Motor Assembly Cross-section Diagram
   *c	When valve fully opened	*d	Deposits

   HINT:

   The illustration is for reference only, actual parts may differ.

   Result

   Result	Proceed to
   Foreign matter between the throttle valve and housing	A
   No foreign matter between the throttle valve and housing	B

   HINT:

   Perform "Inspection After Repair" after replacing the throttle body with motor assembly.

   Refer to INITIALIZATION [12/2021 - ]

Result:

B

REPLACE THROTTLE BODY WITH MOTOR ASSEMBLY (THROTTLE WITH THROTTLE POSITION SENSOR BODY ASSEMBLY). Refer to  REMOVAL [12/2021 - ]

Result:

A

See step  4

1. Clean off any deposits inside of the throttle body with motor assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Throttle Body with Motor Assembly	*2	Bore
   *3	Throttle Valve	-	-
   *a	Reference	*b	Throttle Body with Motor Assembly Cross-section Diagram
   *c	When valve fully opened	*d	Do not directly apply cleaner
   *e	Deposits	-	-

   1. Push open the throttle valve and wipe off any deposits from the valve and bore using a cloth soaked in non-residue solvent.
      NOTE:

      • Make sure that the cloth or your fingers do not get caught in the valve.
      • Make sure that foreign matter does not enter the throttle valve.
      • Do not directly apply non-residue solvent to the throttle body with motor assembly or wash the throttle body with motor assembly. Cleaning solvent may leak into the motor from the shaft and cause problems such as rust or valve movement problems.
      • If there is coating material on the edge of the throttle valve, be careful not to remove it.
      • Push the throttle valve open gently with your finger and check that the throttle valve moves smoothly.

      HINT:

      • If the throttle valve does not open smoothly, replace the throttle body with motor assembly.

        Refer to REMOVAL [12/2021 - ]

      • The illustration is for reference only, actual parts may differ.

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  5

Pre-procedure1

1. Perform "Inspection After Repair" after cleaning the throttle body with motor assembly.

   Refer to INITIALIZATION [12/2021 - ]

   Procedure1

2. According to the display on the GTS, read the Data List.

   Powertrain > Engine > Data List

   Tester Display
   Throttle Air Flow F/B Value

   OK

   The value is half of "Throttle Air Flow F/B Value" recorded in the Freeze Frame Data or less.

   HINT:

   Perform "Inspection After Repair" after replacing the throttle body with motor assembly.

   Refer to INITIALIZATION [12/2021 - ]

   Result

   Proceed to
   OK
   NG

   Post-procedure1

3. None

Result:

OK

END

Result:

NG

REPLACE THROTTLE BODY WITH MOTOR ASSEMBLY (THROTTLE WITH THROTTLE POSITION SENSOR BODY ASSEMBLY). Refer to  REMOVAL [12/2021 - ]
