Removal [12/2023 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 1 TURBO PRESSURE SENSOR ASSEMBLY
    1. GTY1216966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

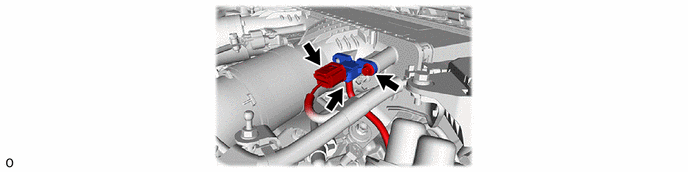

    2. GTY1216967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE VACUUM SENSOR ASSEMBLY
    GTY1042061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
