Removal [10/2022 - ]: Procedure
- PRECAUTION NOTE:
After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
for T24A-FTS: Refer to REMOVAL [10/2022 - ]
for A25A-FXS: Refer to REMOVAL [10/2022 - 08/2023] , or refer to REMOVAL [08/2023 - ]
- REMOVE REAR CONSOLE BOX ASSEMBLY
Refer to REMOVAL [10/2022 - 10/2024] , or refer to REMOVAL [10/2024 - ]
- REMOVE NO. 1 CONSOLE BOX DUCT
Refer to PROCEDURE - Step 36 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 36 [08/2023 - ]
- REMOVE NO. 3 CONSOLE BOX MOUNTING BRACKET NOTE:
When disconnecting a wire harness of any component connected to the supply power of the integrated capacitor (integration control supply) or when removing the integrated capacitor (integration control supply), make sure to wait 5 minutes or more after turning the ignition switch off for self-diagnosis to complete and the voltage of the integrated capacitor (integration control supply) to discharge.

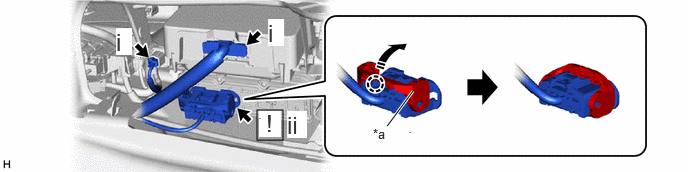

*a Lock Lever - - Lift the lock lever - - - Disconnect the 2 connectors.
- Disengage the claw and lift the lock lever to disconnect the brake control power supply assembly connector as shown in the illustration.NOTE:
After disconnecting the brake control power supply assembly connector, make sure that dirt, water or other foreign matter does not contact the connecting parts of the brake control power supply assembly connector.

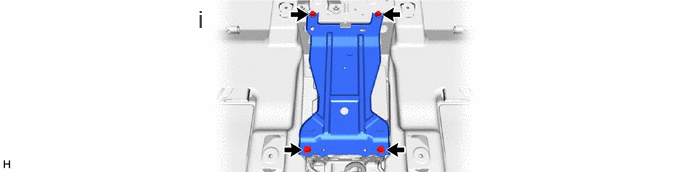

- Remove the 4 bolts and the No. 3 console box mounting bracket with the integration control supply and brake control power supply assembly.

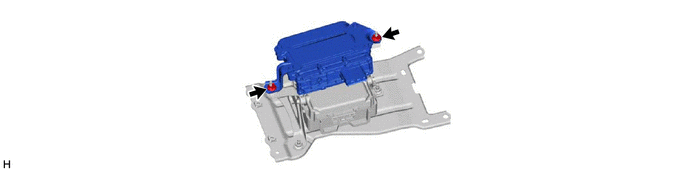

- REMOVE BRAKE CONTROL POWER SUPPLY ASSEMBLY WARNING:
After removing the brake control power supply assembly from the vehicle, there may be an electrical charge left in the internal capacitor. If planning to inspect the inside of the brake control power supply assembly, leave it as is for more than 24 hours (to discharge it) after removing it from the vehicle. Then, perform the inspection.
NOTE:- Do not hold the brake control power supply assembly by the connector.
- Do not drop the brake control power supply assembly when carrying it.

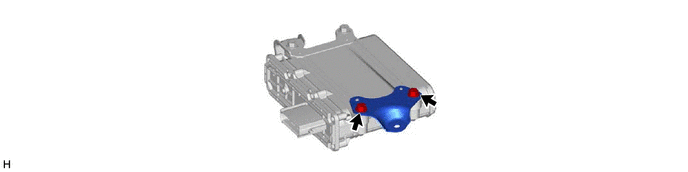

- REMOVE NO. 1 BRAKE CONTROL POWER SUPPLY BRACKET NOTE:
- Do not hold the brake control power supply assembly by the connector.
- Do not drop the brake control power supply assembly when carrying it.

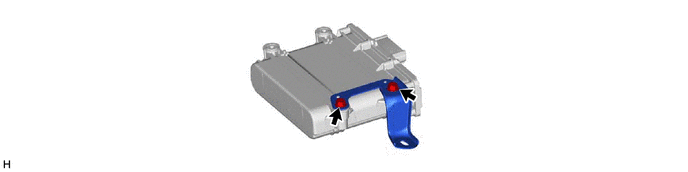

- REMOVE NO. 2 BRAKE CONTROL POWER SUPPLY BRACKET NOTE:
- Do not hold the brake control power supply assembly by the connector.
- Do not drop the brake control power supply assembly when carrying it.
