Freeze Frame Data [08/2016 - 11/2017]
- DESCRIPTION
The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was moving or stationary, whether the engine was warmed up or not, whether the air fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.
HINT:
If it is impossible to replicate the problem even though a DTC is detected, confirm the freeze frame data.

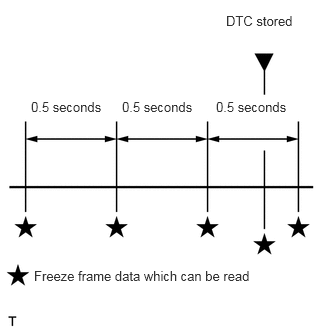

The ECM records engine conditions in the form of freeze frame data every 0.5 seconds. Using the Techstream, 5 separate sets of freeze frame data can be checked.
- 3 data sets before the DTC was stored.
- 1 data set when the DTC was stored.
- 1 data set after the DTC was stored.
These data sets can be used to simulate the condition of the vehicle around the time of the occurrence the malfunction. The data may assist in identifying the cause of the malfunction, and judging whether it was temporary or not.
- PENDING FREEZE FRAME DATA
HINT:

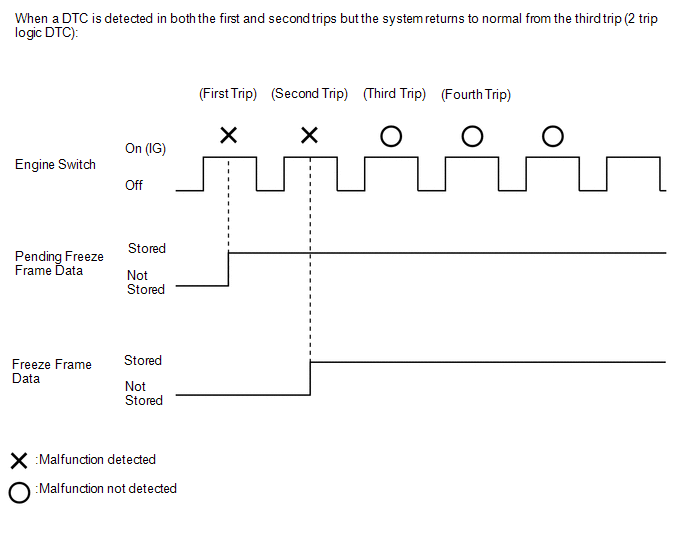

Pending freeze frame data is stored when a 2 trip DTC is first detected during the first trip.
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Powertrain / Engine / Trouble Codes.
Powertrain > Engine > Trouble Codes
- Select a DTC in order to display its pending freeze frame data.
HINT:
- Pending freeze frame data is cleared when any of the following occurs.
- Using the GTS, the DTCs cleared.
- The cable is disconnected from the negative (-) battery terminal.
- 40 trips with the engine fully warmed up have been performed after returning to normal. (Pending freeze frame data will not be cleared by only returning the system to normal.)

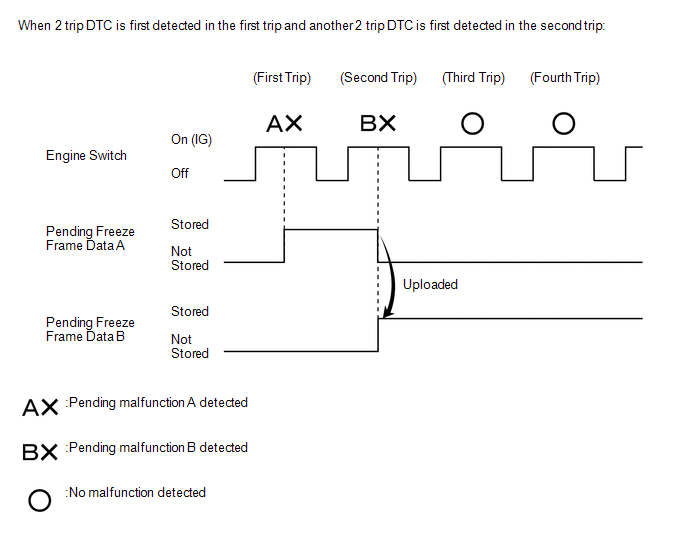

- With previous pending freeze frame data stored, if pending freeze frame data is newly stored when a 2 trip DTC is detected in the first trip, the old freeze frame data will be replaced with the new data of the newly detected DTC in the next trip.
- Pending freeze frame data is cleared when any of the following occurs.
- LIST OF FREEZE FRAME DATA
Powertrain > Engine
Tester Display Vehicle Speed Engine Speed Calculate Load Vehicle Load MAF Atmosphere Pressure Coolant Temp Intake Air Ambient Temperature Engine Run Time Initial Engine Coolant Temp Coolant Temp Variation after Waterpump Start Initial Intake Air Temp Intake Air Temp Variation after Engine Start Battery Voltage Glow Indicator Supported Glow Indicator Accel Sens. No. 1 Volt % Accel Sens. No. 2 Volt % Throttle Sensor Volt % Throttl Sensor #2 Volt % Throttle Sensor Position Throttle Motor DUTY Throttle Air Flow Learning Value(Area 1) Throttle Air Flow Learning Value(Area 2) Throttle Air Flow Learning Value(Area 3) Throttle Air Flow Learning Value(Calculated Value) Throttle Air Flow Learning Value(Atmosphere Pressure Offset Value) Throttle Air Flow Learning Prohibit(Intake Air Pressure Malfunction) Throttle Air Flow Learning Prohibit(Air Fuel Ratio Malfunction) Throttle Position ISC Flow ISC Position ISC Feedback Value ISC Learning Value Electric Load Feedback Val Air Conditioner FB Val Low Revolution Control N Range Status Eng Stall Control FB Flow Fuel Press Injector (Port) Injection Volum (Cylinder1) Fuel Pump/Speed Status Vacuum Pump Fuel Pressure Target Value High Fuel Pressure Sensor Fuel Pump Duty (D4) Fuel Pump2 Duty (D4) HP FP Discharge Rate HP FP Discharge Rate 2 Injection Way Injection Switching Status Injection Timing (D4) Injection Time (D4) Current Fuel Type EVAP (Purge) VSV Evap Purge Flow Purge Density Learn Value EVAP System Vent Valve EVAP Purge VSV Purge Cut VSV Duty Target Air-Fuel Ratio AF Lambda B1S1 AF Lambda B2S1 AFS Voltage B1S1 AFS Voltage B2S1 AFS Current B1S1 AFS Current B2S1 A/F Heater Duty B1S1 A/F Heater Duty B2S1 O2S B1S2 O2S B2S2 O2S Impedance B1S2 O2S Impedance B2S2 O2 Heater B1S2 O2 Heater B2S2 O2 Heater Curr Val B1S2 O2 Heater Curr Val B2S2 Short FT #1 Long FT #1 Total FT #1 Short FT #2 Long FT #2 Total FT #2 Fuel System Status #1 Fuel System Status #2 IGN Advance Knock Feedback Value Knock Correct Learn Value Idle Spark Advn Ctrl #1 Idle Spark Advn Ctrl #2 Idle Spark Advn Ctrl #3 Idle Spark Advn Ctrl #4 Idle Spark Advn Ctrl #5 Idle Spark Advn Ctrl #6 Idle Spark Advn Ctrl #7 Idle Spark Advn Ctrl #8 AICV VSV VVT Advance Fail Catalyst Temp B1S1 Catalyst Temp B2S1 Catalyst Temp B1S2 Catalyst Temp B2S2 Starter Signal Neutral Position SW Signal Stop Light Switch A/C Signal Idle Up Signal Closed Throttle Position SW Fuel Cut Condition Immobilizer Communication TC Terminal Time after DTC Cleared Distance from DTC Cleared Warmup Cycle Cleared DTC Dist Batt Cable Disconnect IG OFF Elapsed Time TC and TE1 Total Distance Traveled Ignition Trig. Count Cylinder #1 Misfire Count Cylinder #2 Misfire Count Cylinder #3 Misfire Count Cylinder #4 Misfire Count Cylinder #5 Misfire Count Cylinder #6 Misfire Count Cylinder #7 Misfire Count Cylinder #8 Misfire Count All Cylinders Misfire Count Multi Cylinders Misfire Count Misfire RPM Misfire Load Misfire Margin Catalyst OT MF F/C Cat OT MF F/C History Cat OT MF F/C Cylinder#1 Cat OT MF F/C Cylinder#2 Cat OT MF F/C Cylinder#3 Cat OT MF F/C Cylinder#4 Cat OT MF F/C Cylinder#5 Cat OT MF F/C Cylinder#6 Cat OT MF F/C Cylinder#7 Cat OT MF F/C Cylinder#8 Engine Speed (Starter Off) Starter Count Run Dist of Previous Trip Engine Starting Time Previous Trip Coolant Temp Previous Trip Intake Temp Engine Oil Temperature Previous Trip Eng Oil Temp Ambient Temp for A/C Previous Trip Ambient Temp Engine Start Hesitation Low Rev for Eng Start Minimum Engine Speed Fuel Cut Elps Time A/F Learn Value Idle #1 A/F Learn Value Low #1 A/F Learn Value Mid1 #1 A/F Learn Value Mid2 #1 A/F Learn Value High #1 A/F Learn Val Low #1 (Dual) A/F Learn Val Mid1 #1 (Dual) A/F Learn Val Mid2 #1 (Dual) A/F Learn Val High #1 (Dual) A/F Learn Value Idle #2 A/F Learn Value Low #2 A/F Learn Value Mid1 #2 A/F Learn Value Mid2 #2 A/F Learn Value High #2 A/F Learn Val Low #2 (Dual) A/F Learn Val Mid1 #2 (Dual) A/F Learn Val Mid2 #2 (Dual) A/F Learn Val High #2 (Dual) Alternator Output Duty Alt Vol - Non Active Test Alt Vol - Active Test Electric Fan Motor Brake Override System Idle Fuel Cut FC TAU Immobilizer Fuel Cut Immobilizer Fuel Cut History Communication with ECT Electrical Load Signal 1 Cruise Main SW Key Unlock Signal A/F Sensor Determination (worst value) #1 A/F Sensor Determination (worst value) #2 Engine Speed Fluctuation Avg (worst value) #1 Engine Speed Fluctuation Avg (worst value) #2 Engine Speed Fluctuation Avg (worst value) #3 Engine Speed Fluctuation Avg (worst value) #4 Engine Speed Fluctuation Avg (worst value) #5 Engine Speed Fluctuation Avg (worst value) #6 Engine Speed Fluctuation Avg (worst value) #7 Engine Speed Fluctuation Avg (worst value) #8 A/F Sensor Determination (worst value) (Port) #1 A/F Sensor Determination (worst value) (Port) #2 Engine Speed Fluctuation Avg (worst value) (Port) #1 Engine Speed Fluctuation Avg (worst value) (Port) #2 Engine Speed Fluctuation Avg (worst value) (Port) #3 Engine Speed Fluctuation Avg (worst value) (Port) #4 Engine Speed Fluctuation Avg (worst value) (Port) #5 Engine Speed Fluctuation Avg (worst value) (Port) #6 Engine Speed Fluctuation Avg (worst value) (Port) #7 Engine Speed Fluctuation Avg (worst value) (Port) #8 Received MIL from ECT Shift Position Sig from ECT A/T Oil Temp from ECT SPD (NO) SPD (NT) ECT Lock Up SPD (SP2) Shift SW Status (P Range) Kick Down Switch Status Pattern Switch (PWR/M) Shift SW Status (R Range) Shift SW Status (N Range) Shift SW Status (N, P Range) Supported Shift SW Status (N, P Range) Sports Shift Up SW Sports Shift Down SW Sports Mode Selection SW Snow Switch Status Shift SW Status (D Range) Normal Mode Switch ECO Switch Snow or 2nd Start Mode
