System Diagram [03/2019 - ]

The configuration of the electronic control system for the AA80E automatic transmission is as shown in the following chart.

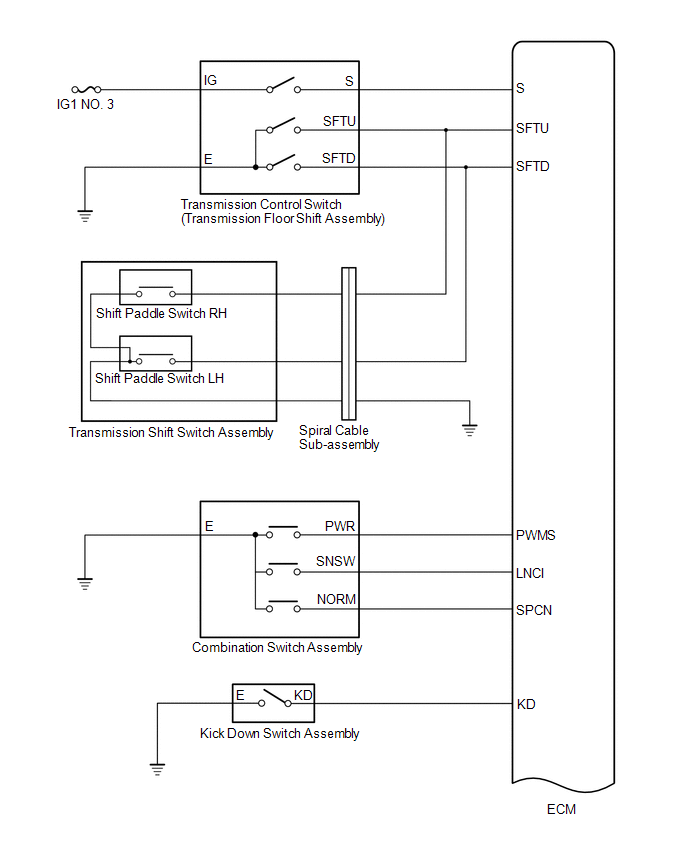

GTY954569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

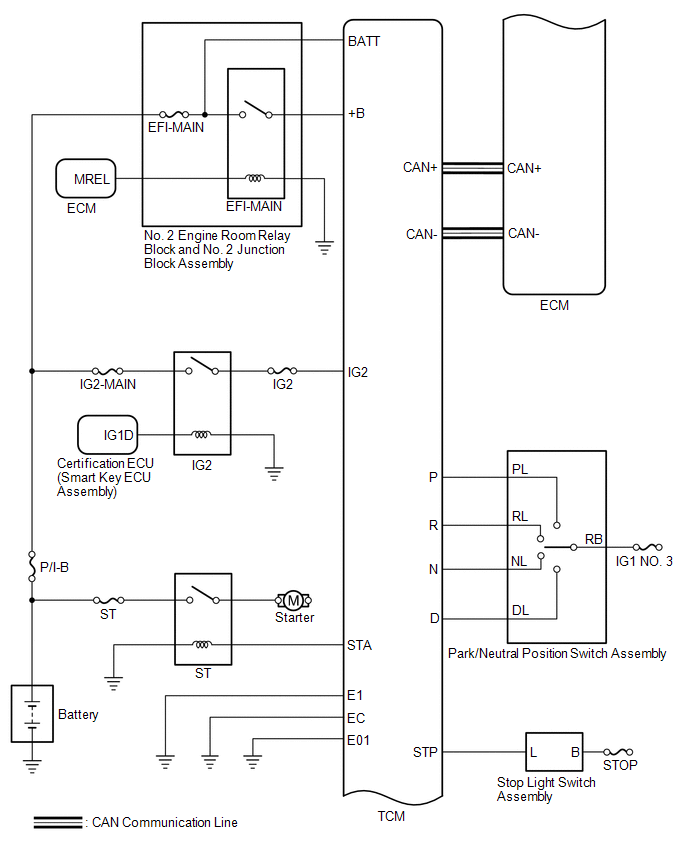

GTY956974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

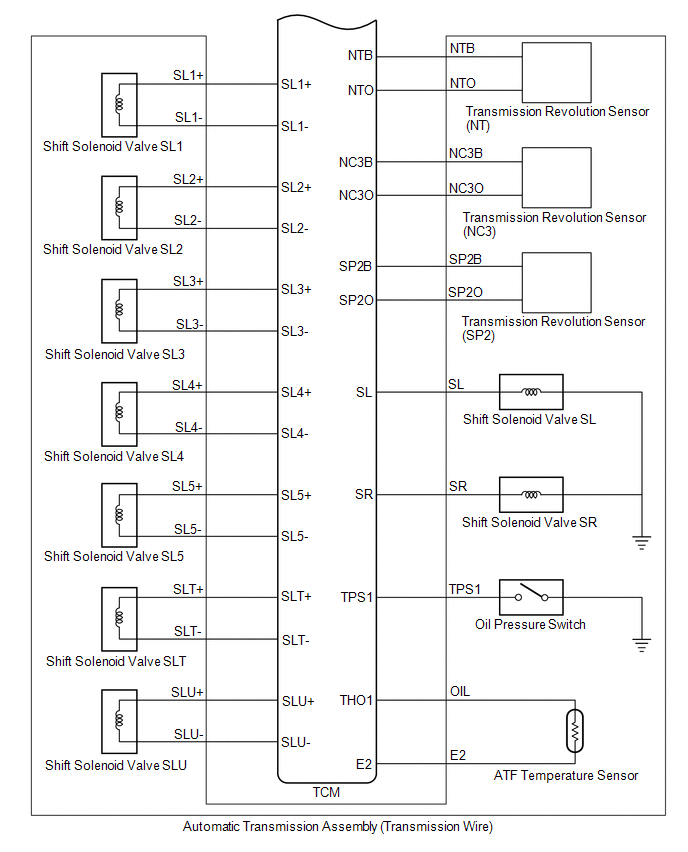

GTY514494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
