System Diagram [09/2014 - 08/2016]

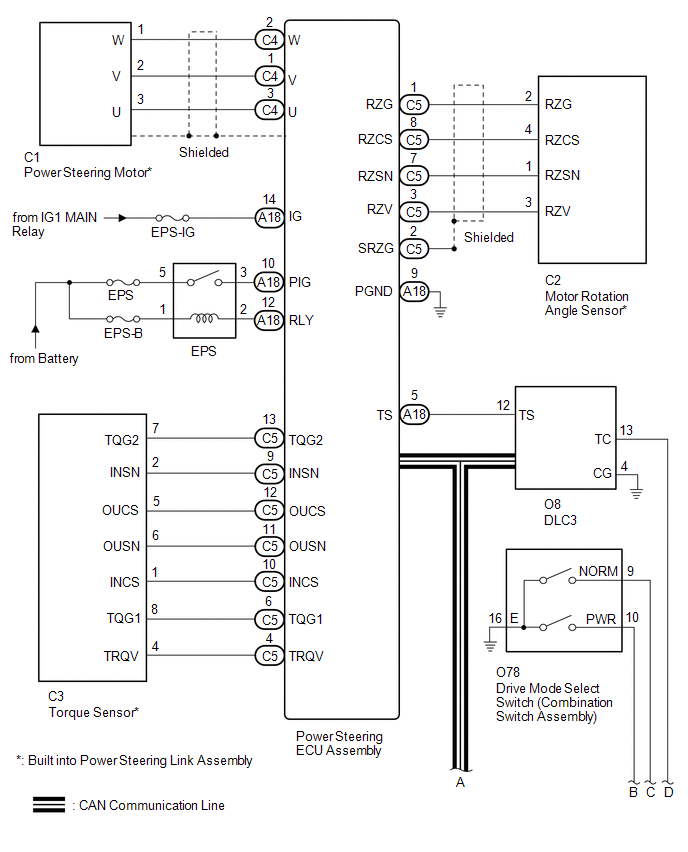

Fig 1: Power Steering Diagram (1 Of 2)
GTY514337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

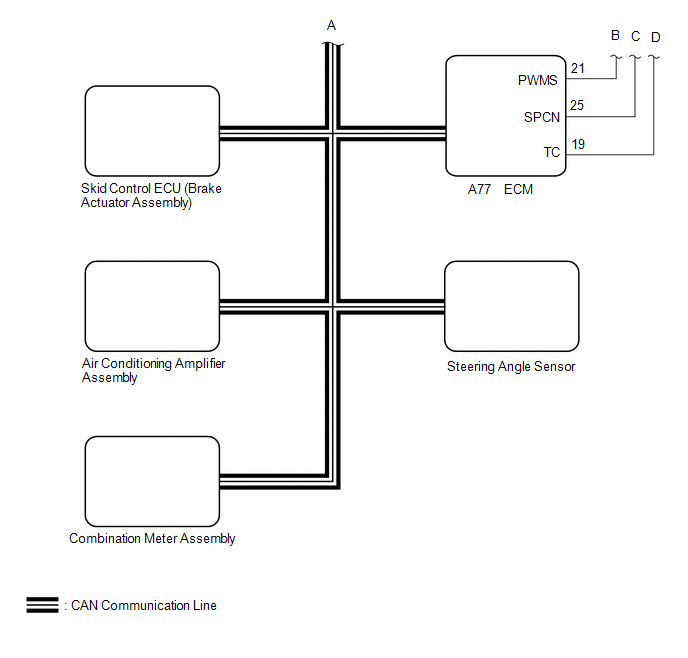

Fig 2: Power Steering Diagram (2 Of 2)
GTY512556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
