Steering
>>
Power Steering
>>
Power Steering System - Diagnostics - Introduction
>>
Power Steering System
>>
System Diagram [03/2019 - ]
>>
System Diagram [03/2019 - ]
System Diagram [03/2019 - ]

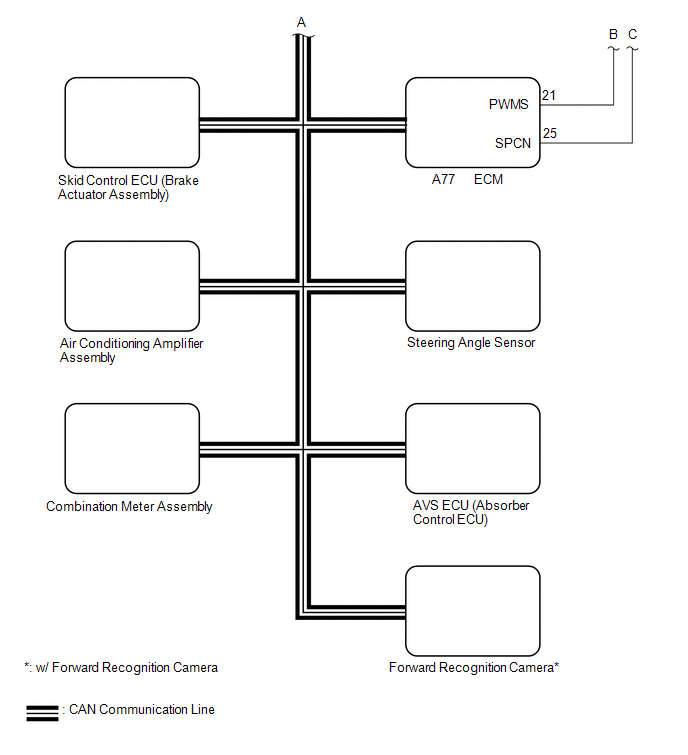

Fig 1: Power Steering Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

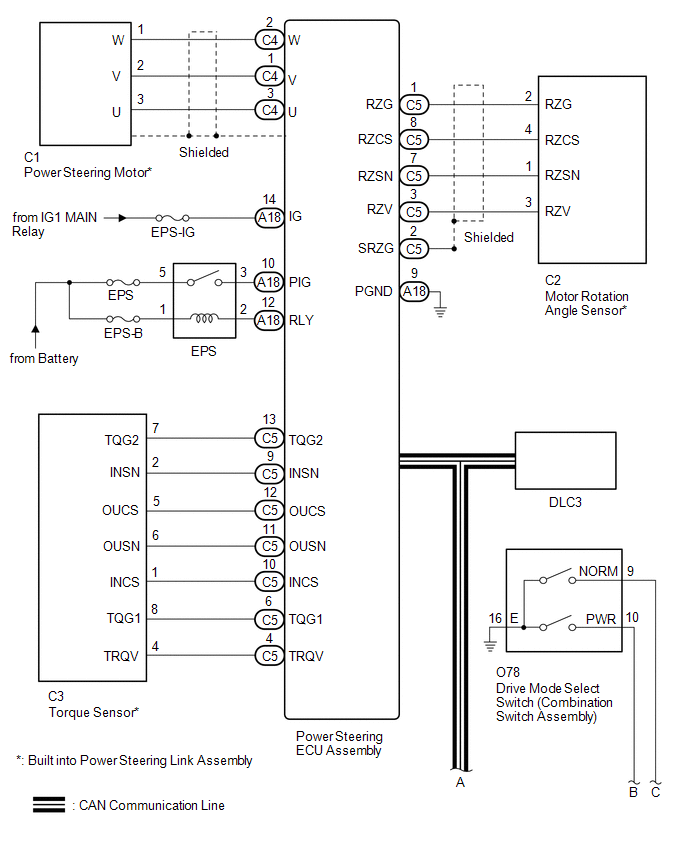

Fig 2: Power Steering Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
