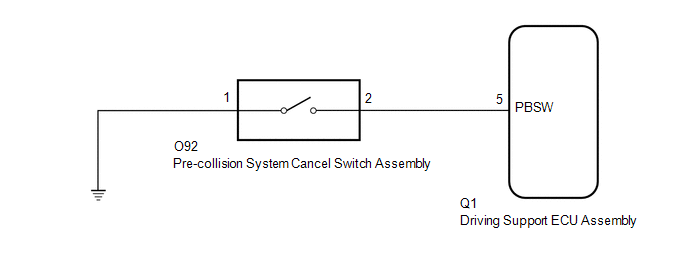

Pre-collision System Cancel Switch Circuit [09/2014 - 11/2017]: Wiring Diagram

GTY480403

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
