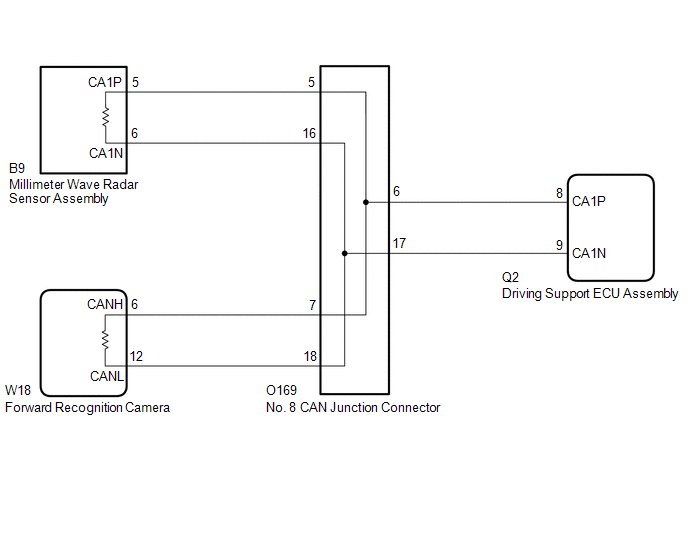

DTC U1002: Lost Communication with Gateway Module [11/2017 - 03/2019]: Wiring Diagram

GTY796892

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
