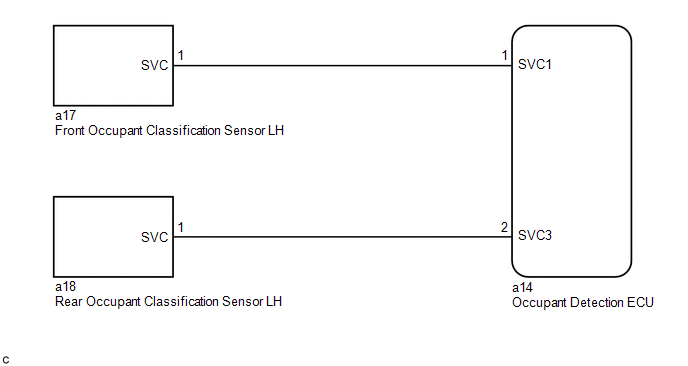

DTC B1793: Occupant Classification Sensor Power Supply Circuit Malfunction [09/2014 - 03/2019]: Wiring Diagram

GTY499377

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
