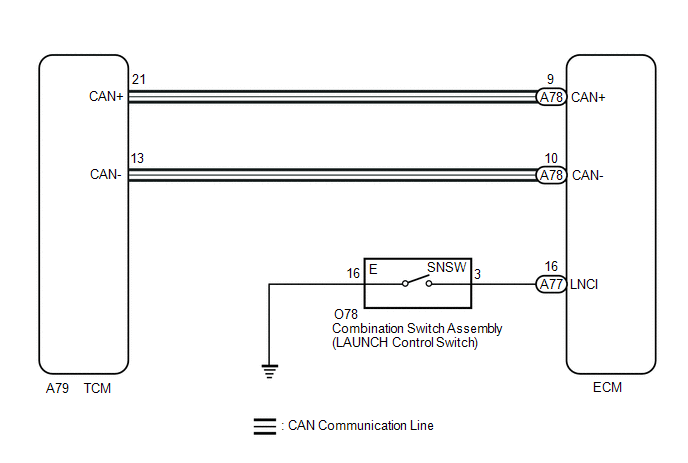

Pattern Select Switch Launch Control Circuit [03/2019 - 09/2020]: Wiring Diagram

GTY959200

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
