Wiper System / Washer System - Service Information
>>
Wiper Switch
>>
Components [09/2014 - 03/2019]
Components [09/2014 - 03/2019]

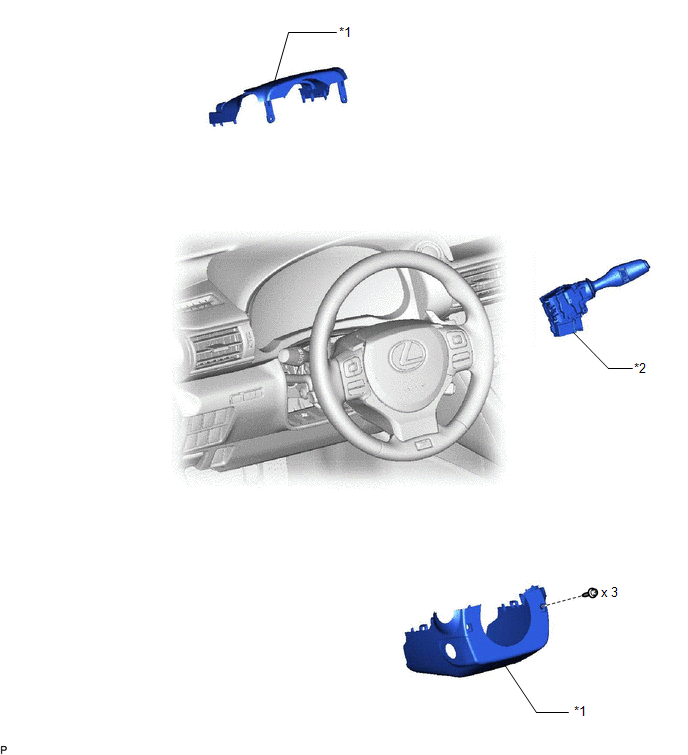

Fig 1: Wiper Switch Replacement Components [09/2014 - 03/2019]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
STEERING COLUMN COVER
*2
WINDSHIELD WIPER SWITCH ASSEMBLY
