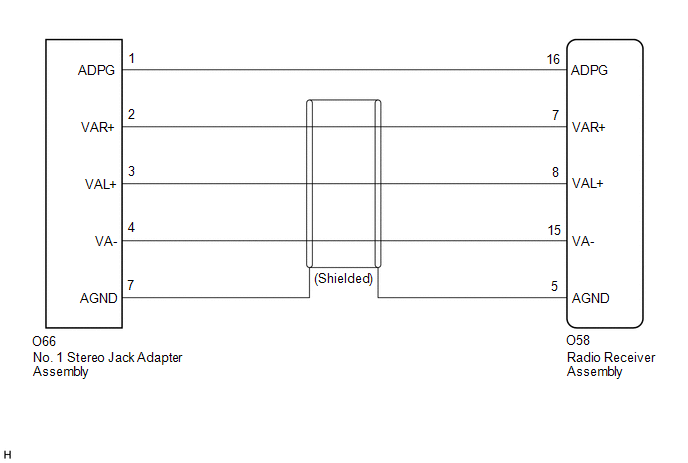

Sound Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter [09/2014 - 11/2017]: Wiring Diagram

GTY507607

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
