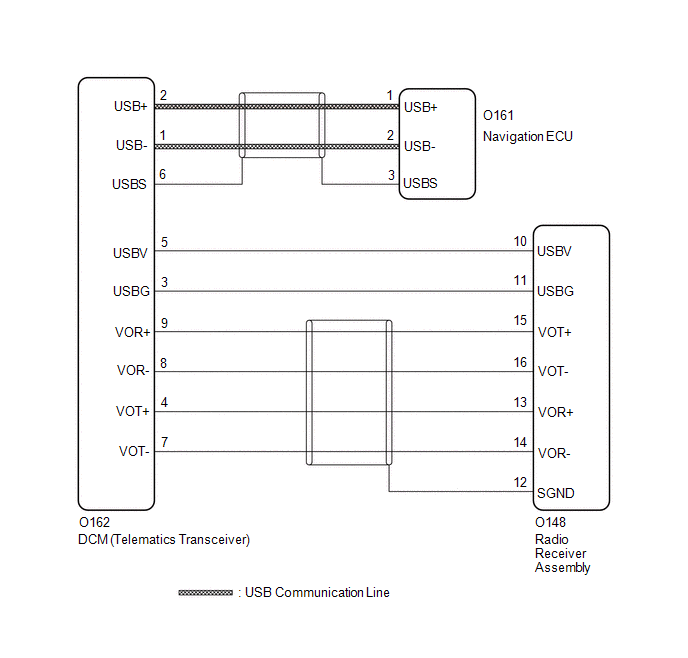

DCM Data Signal Circuit between Navigation ECU and DCM [11/2017 - 09/2020]: Wiring Diagram

GTY817032

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
