DCM Data Signal Circuit between Radio Receiver and DCM [09/2020 - ]: Procedure
- CHECK HARNESS AND CONNECTOR (RADIO RECEIVER ASSEMBLY - DCM (TELEMATICS TRANSCEIVER))
- Disconnect the O148 radio receiver assembly connector.
- Disconnect the O173 DCM (telematics transceiver) connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition O148-10 (USBV) - O173-15 (USBV) Always Below 1 Ω O148-11 (USBG) - O173-31 (USBG) Always Below 1 Ω O148-15 (VOT+) - O173-18 (VOR+) Always Below 1 Ω O148-16 (VOT-) - O173-34 (VOR-) Always Below 1 Ω O148-13 (VOR+) - O173-17 (VOT+) Always Below 1 Ω O148-14 (VOR-) - O173-33 (VOT-) Always Below 1 Ω O148-10 (USBV) or O173-15 (USBV) - Body ground Always 10 kΩ or higher O148-11 (USBG) or O173-31 (USBG) - Body ground Always 10 kΩ or higher O148-15 (VOT+) or O173-18 (VOR+) - Body ground Always 10 kΩ or higher O148-16 (VOT-) or O173-34 (VOR-) - Body ground Always 10 kΩ or higher O148-13 (VOR+) or O173-17 (VOT+) - Body ground Always 10 kΩ or higher O148-14 (VOR-) or O173-33 (VOT-) - Body ground Always 10 kΩ or higher O148-12 (SGND) - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 2
- CHECK HARNESS AND CONNECTOR (RADIO RECEIVER ASSEMBLY - DCM (TELEMATICS TRANSCEIVER))
- Disconnect the O179 DCM (telematics transceiver) connector.

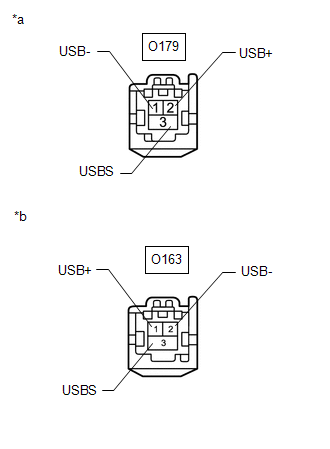

*a Front view of wire harness connector
(to DCM (Telematics Transceiver))*b Front view of wire harness connector
(to Radio Receiver Assembly) - Disconnect the O163 radio receiver assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition O179-1 (USB-) - O163-2 (USB-) Always Below 1 Ω O179-2 (USB+) - O163-1 (USB+) Always Below 1 Ω O179-3 (USBS) - O163-3 (USBS) Always Below 1 Ω O179-1 (USB-) or O163-2 (USB-) - Body ground Always 10 kΩ or higher O179-2 (USB+) or O163-1 (USB+) - Body ground Always 10 kΩ or higher O179-3 (USBS) or O163-3 (USBS) - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
OK
PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE [09/2020 - ]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
