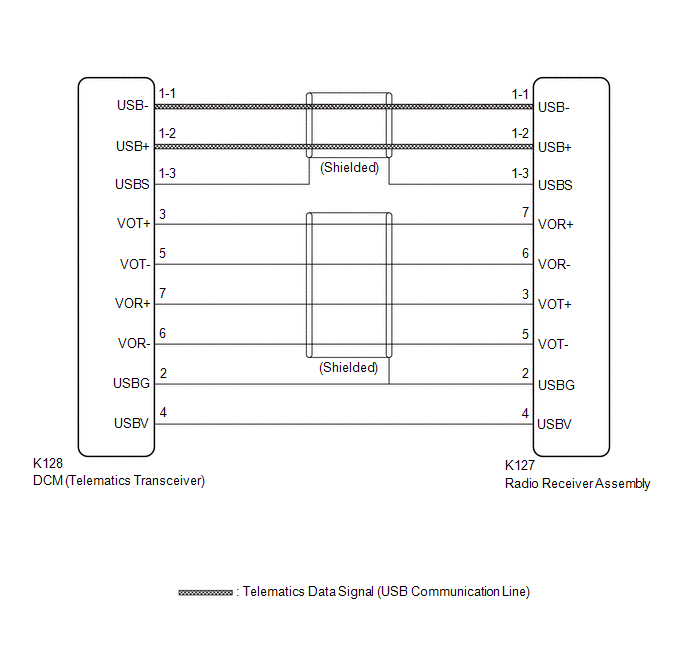

DCM Data Signal Circuit between Navigation ECU and DCM [09/2014 - 11/2017]: Wiring Diagram

GTY515940

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
