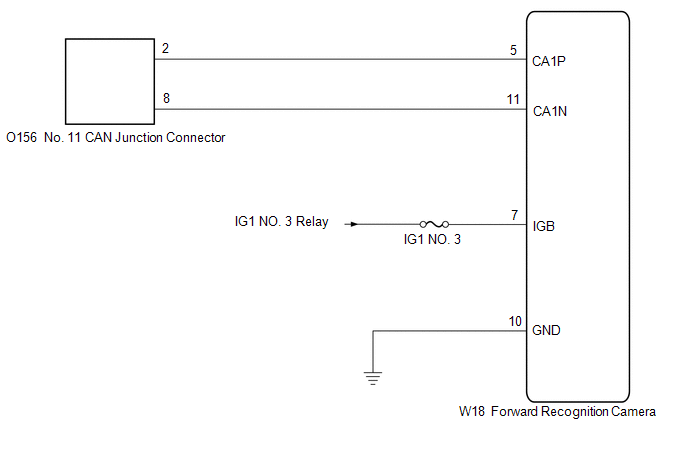

Front Camera Module Communication Stop Mode [11/2017 - 09/2020]: Wiring Diagram

GTY797812

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
