Removal [03/2023 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2021 - ]
  2. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [11/2021 - ]

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  4. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 25 [03/2023 - 03/2024] , or refer to PROCEDURE - Step 25 [03/2024 - ]
  5. REMOVE NO. 3 ENGINE COVER

    Refer to PROCEDURE - Step 26 [03/2023 - 03/2024] , or refer to PROCEDURE - Step 26 [03/2024 - ]

  6. REMOVE NO. 2 FUEL PRESSURE SENSOR HOLDER

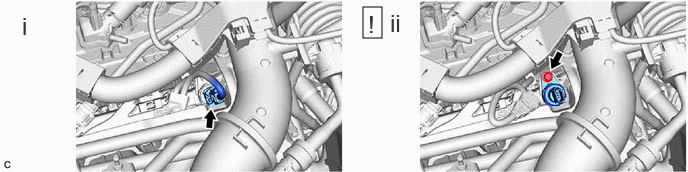

    1. GTY1133709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the No. 2 fuel pressure sensor connector.
      2. Using an 8 mm socket wrench, remove the bolt and No. 2 fuel pressure sensor holder from the fuel delivery pipe.
  7. REMOVE NO. 2 FUEL PRESSURE SENSOR

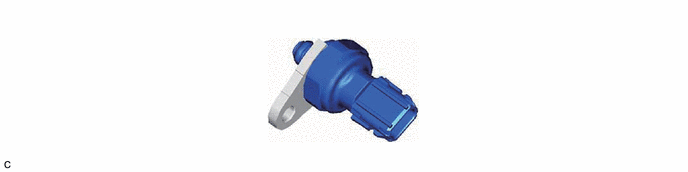

    1. GTY1181159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
