Installation [11/2021 - ]: Procedure

  1. INSTALL FUEL MAIN VALVE ASSEMBLY

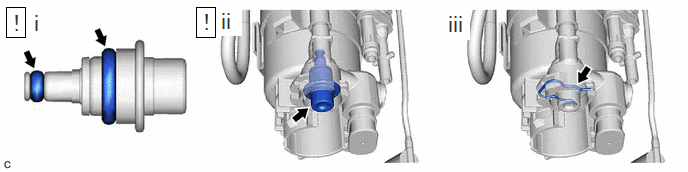

    1. GTY1075708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply gasoline to 2 new O-rings. Then install the O-rings to the fuel main valve assembly.
      2. Install the fuel main valve assembly to the fuel filter.
        NOTE:

        Make sure that the O-rings are not cut or pinched during installation.

      3. Install the clip to the fuel filter.
  2. INSTALL NO. 2 FUEL MAIN VALVE ASSEMBLY

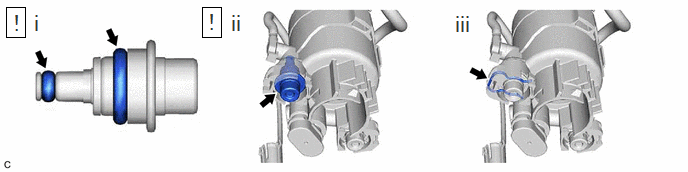

    1. GTY1075812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply gasoline to 2 new O-rings. Then install the O-rings to the No. 2 fuel main valve assembly.
      2. Install the No. 2 fuel main valve assembly to the fuel filter.
        NOTE:

        Make sure that the O-rings are not cut or pinched during installation.

      3. Install the clip to the fuel filter.
  3. INSTALL FUEL PUMP

    Refer to REASSEMBLY [11/2021 - ]
