On-Vehicle Inspection [11/2021 - ]: Procedure

  1. INSPECT INTAKE SYSTEM

    HINT:

    Perform "Inspection After Repair" after repairing vacuum leaks in the intake system.

    Refer to INITIALIZATION [11/2021 - ]

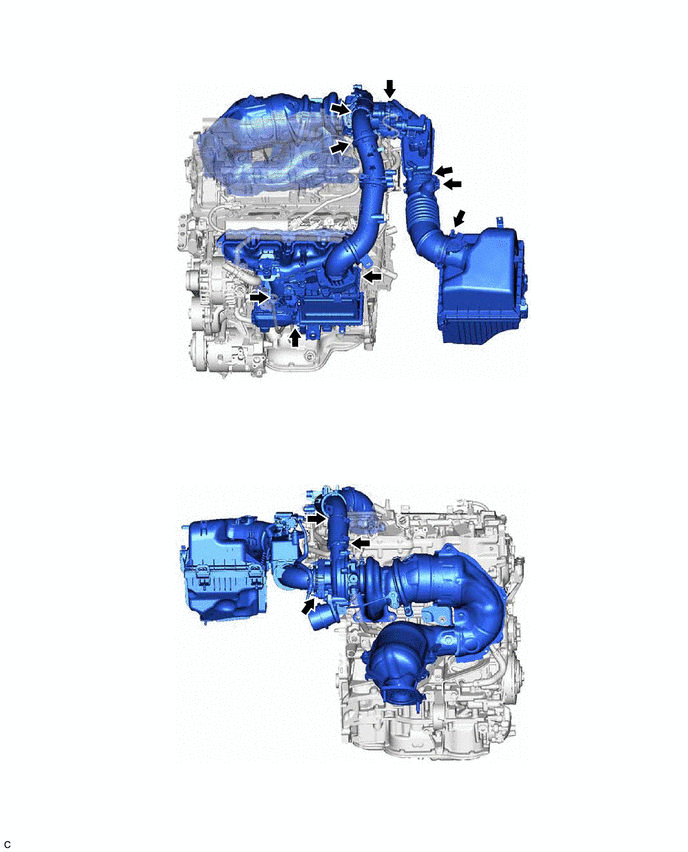

    1. Check that there are no vacuum leaks at the points shown in the illustration.
      GTY1079141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. PERFORM INITIALIZATION
    1. Perform "Inspection After Repair" after repairing vacuum leaks in the intake system.

      Refer to INITIALIZATION [11/2021 - ]
