Front Passenger Side Seat Belt Warning Light does not Operate [12/2021 - ]: Wiring Diagram

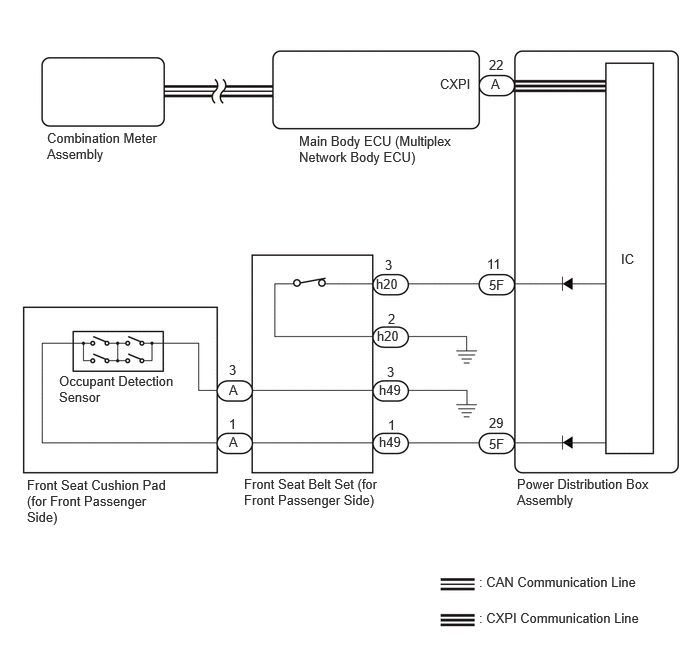

for VIP Captain Seat:

GTY1058610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

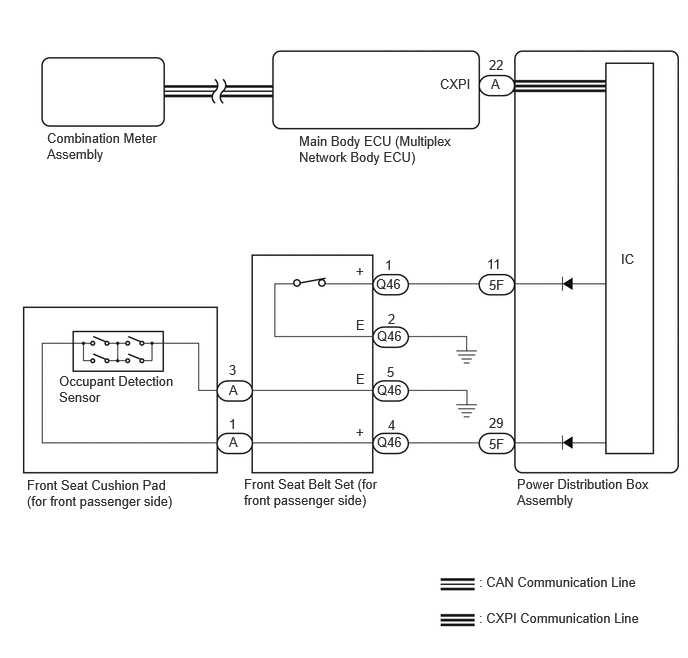

except VIP Captain Seat:

GTY1058611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
