Engine Control System (W/O Canister Pump Module) - Diagnostic Codes (5 Of 5) & Circuit Tests (1 Of 2)
>>
SFI SYSTEM (w/o Canister Pump Module)
>>
VC Output Circuit [12/2021 - ]
>>
Wiring Diagram
VC Output Circuit [12/2021 - ]: Wiring Diagram
For the circuit diagram of the ECM power source refer to the ECM power source circuit.
Refer to

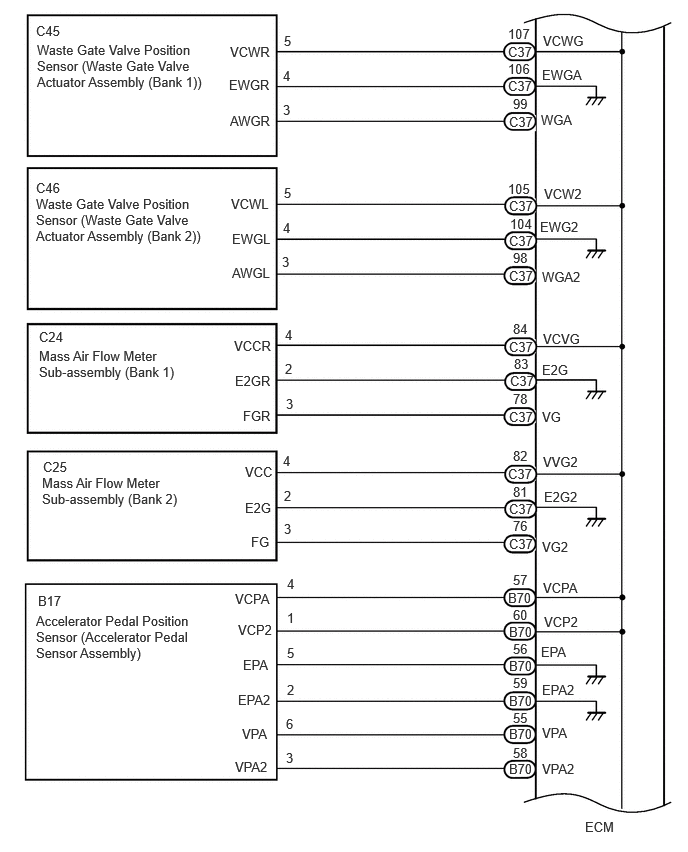

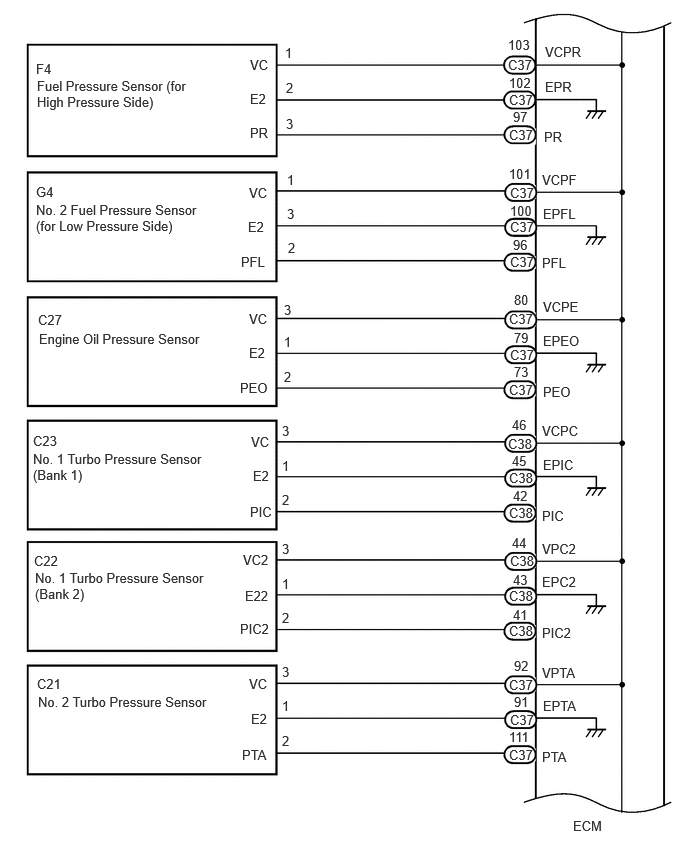

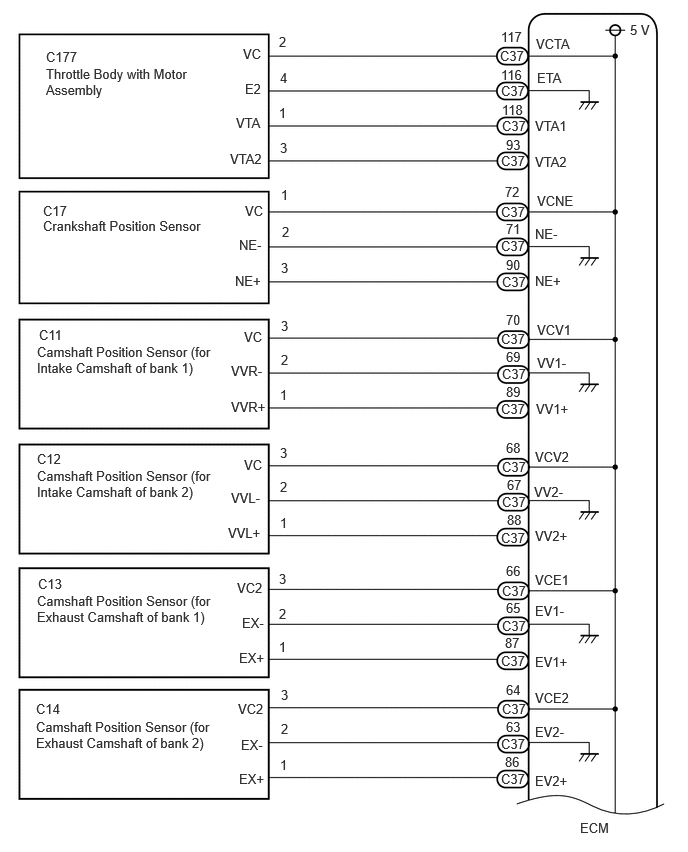

WIRING DIAGRAM
VC Output Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
