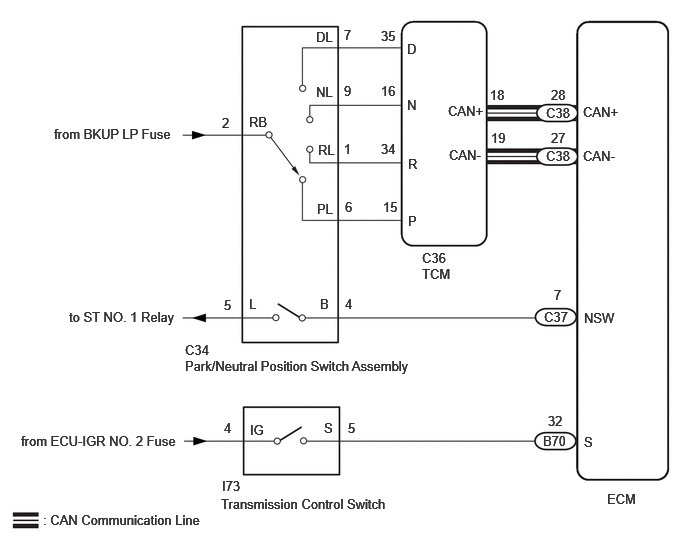

DTC P0705-13: Transmission Range Sensor "A" Circuit Open; DTC P0705-62: Transmission Range Sensor "A" Signal Compare Failure [12/2021 - ]: Wiring Diagram

GTY1074081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
