DTC P0120-11: Throttle / Pedal Position Sensor / Switch "A" Circuit Short to Ground [12/2021 - ]: Wiring Diagram

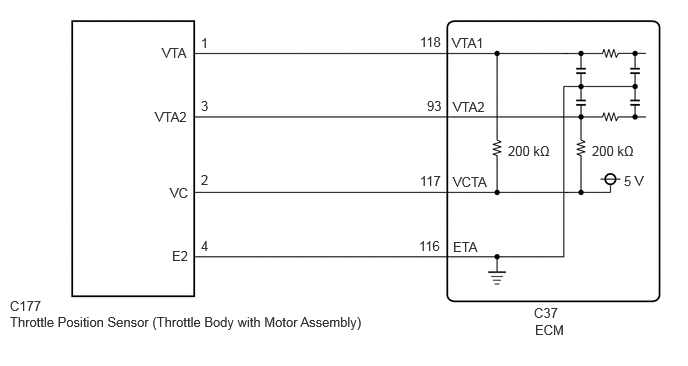

GTY1074736

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
