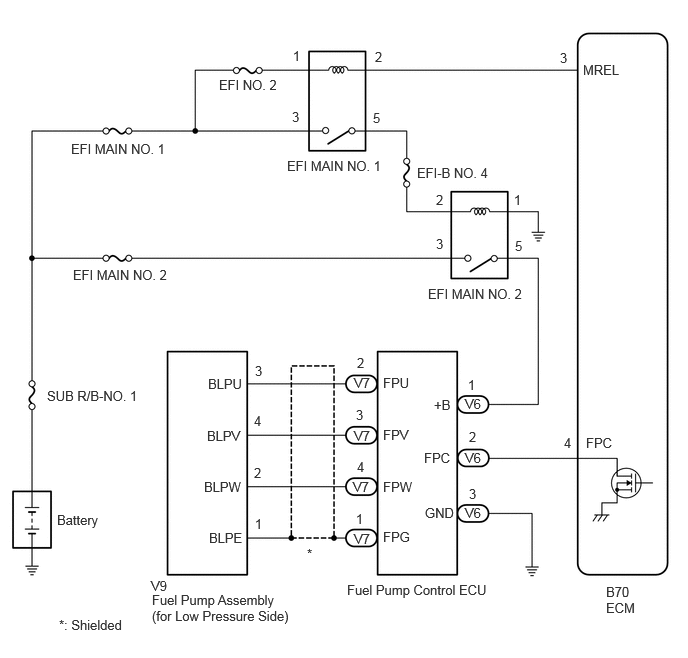

Fuel Pump Control Circuit [12/2021 - ]: Wiring Diagram

GTY1074277

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
