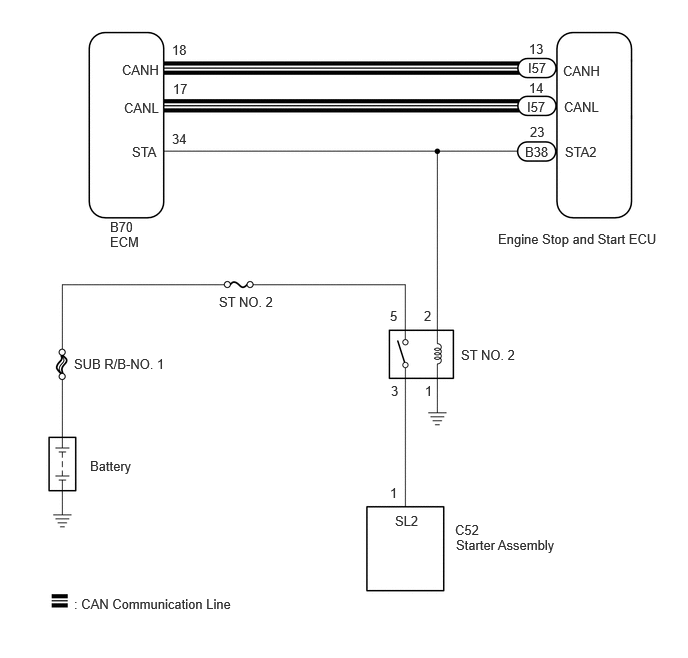

STA Signal Circuit [12/2021 - ]: Wiring Diagram

GTY1052420

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
