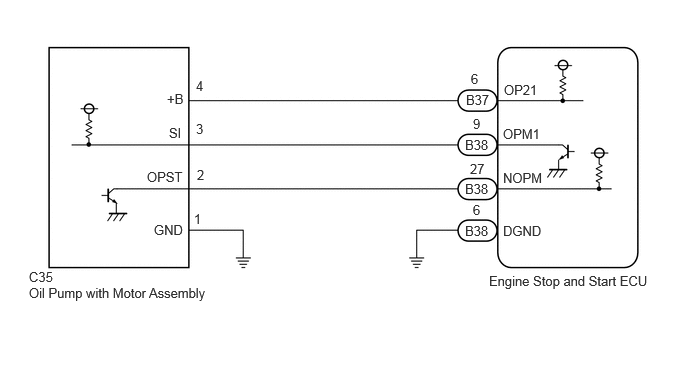

DTC P0C2B-11: Auxiliary Transmission Fluid Pump Control Module Feedback Signal Circuit Short to Ground [12/2021 - 10/2023]: Wiring Diagram

GTY1052487

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
