Operation Check [07/2020 - ]

  1. CHECK WINDOW LOCK FUNCTION
    Fig 1: Window Lock Function
    GTY508452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Turn the engine switch on (IG).
    2. Press the window lock switch of the multiplex network master switch assembly.

      HINT:

      The illumination (LED) built into the switch knob of each seat does not turn off.

    3. Check that the power window for each seat except the driver seat can no longer be operated.

      HINT:

      Check that the power window for each seat can be operated from the driver seat.

    4. Press the window lock switch of the multiplex network master switch assembly again.
    5. Check that the power window for each seat except the driver seat can be operated.
  2. CHECK MANUAL UP / DOWN FUNCTION
    1. Check that the driver door power window operates as follows:
      OK

      Condition Master Switch Switch Operation Power Window
      • Engine switch on (IG)
      • Window lock switch off
      		 Driver door Pulled halfway up UP (Closes)
      Pushed halfway down DOWN (Opens)
    2. Check that the front passenger door window operates as follows:
      OK

      Condition Regulator Switch Switch Operation Power Window
      • Engine switch on (IG)
      • Window lock switch off
      		 Front passenger door Pulled halfway up UP (Closes)
      Pushed halfway down DOWN (Opens)
  3. CHECK AUTO UP / DOWN FUNCTION
    1. Check that the driver door power window operates as follows:
      OK

      Condition Master Switch Switch Operation Power Window
      • Engine switch on (IG)
      • Window lock switch off
      		 Driver door Pulled up (One touch operation) AUTO UP (Closes)
      Pushed down (One touch operation) AUTO DOWN (Opens)
    2. Check that the front passenger door window operates as follows:
      OK

      Condition Regulator Switch Switch Operation Power Window
      • Engine switch on (IG)
      • Window lock switch off
      		 Front passenger door Pulled up (One touch operation) AUTO UP (Closes)
      Pushed down (One touch operation) AUTO DOWN (Opens)
  4. CHECK ALL POWER WINDOW AUTO DOWN FUNCTION
    1. Check that all power windows operate as follows when operating the sliding roof switch assembly (all window switch):
      OK

      Condition Switch Operation Power Window
      • Engine switch on (IG)
      • Window lock switch off
      		 Pushed down (One touch operation) Auto down (Opens)
  5. CHECK REMOTE MANUAL UP / DOWN FUNCTION
    1. Check that the front passenger side and quarter power windows operate as follows:
      OK

      Condition Master Switch Switch Operation Power Window
      • Engine switch on (IG)
      • Window lock switch off
      		 Front passenger door Pulled halfway up UP (Closes)
      Pushed halfway down DOWN (Opens)
      Quarter side LH Pulled halfway up UP (Closes)
      Pushed halfway down DOWN (Opens)
      Quarter side RH Pulled halfway up UP (Closes)
      Pushed halfway down DOWN (Opens)
  6. CHECK REMOTE AUTO UP* / DOWN FUNCTION

    *: w/ Front Passenger Door Auto Up Function

    1. Check that the front passenger side and quarter power windows operate as follows:
      OK

      Condition Master Switch Switch Operation Power Window
      • Engine switch on (IG)
      • Window lock switch off
      		 Front passenger door Pulled up (One touch operation) AUTO UP (Closes)
      Pushed down (One touch operation) AUTO DOWN (Opens)
      Quarter side LH Pushed down (One touch operation) AUTO DOWN (Opens)
      Quarter side RH Pushed down (One touch operation) AUTO DOWN (Opens)
  7. CHECK KEY-OFF OPERATION FUNCTION
    1. Check that each power window can be operated with the multiplex network master switch assembly or power window regulator switch assembly after the engine switch is turned off.

      HINT:

      If the window lock switch is on, the front passenger door power window cannot be operated by using the power window regulator switch assembly. Therefore, turn the window lock switch off before checking the window operation.

    2. Check that the key-off operation function does not operate immediately after the driver door or front passenger door is opened.

      HINT:

      If a power window is being operated by auto operation while the key-off operation function is on, and the driver door or front passenger door is opened, the power window will stop operating.

    3. Check that all the power windows cannot be operated after more than approximately 43 seconds have elapsed since the engine switch is turned off.
  8. CHECK WIRELESS TRANSMITTER-LINKED FUNCTION*
    1. *: This function is set through the customize function, as it is off by default.

      Refer to CUSTOMIZE PARAMETERS [07/2020 - ]

    1. Check that all power windows operate as follows when operating the electrical key transmitter sub-assembly:
      OK

      Condition Transmitter Operation Power Window
      No key is inside vehicle, and all doors are closed and locked UNLOCK switch pressed for more than 3 seconds DOWN (Opens)
      No key is inside vehicle, and all doors are closed and locked UNLOCK switch released STOP
  9. CHECK KEY-LINKED FUNCTION*
    1. *: This function is set through the customize function, as it is off by default.

      Refer to CUSTOMIZE PARAMETERS [07/2020 - ]

    1. Check that all power windows operate as follows:
      OK

      Condition Door Key Cylinder Operation Power Window
      No key is inside vehicle, and all doors are closed Key is turned to the lock position and held for more than 2 seconds UP (Closes)
      No key is inside vehicle, and all doors are closed Returned to neutral position STOP
      No key is inside vehicle, and all doors are closed Key is turned to the unlock position and held for more than 2 seconds DOWN (Opens)
      No key is inside vehicle, and all doors are closed Returned to neutral position STOP
  10. CHECK WINDOW OPEN WARNING FUNCTION
    NOTE:

    Check that the customize setting 'Window Open Warning' is set to 'ON' before performing the following procedure.

    Refer to CUSTOMIZE PARAMETERS [07/2020 - ]

    1. If the warning start conditions are met, check that the warning buzzer in the combination meter assembly sounds and 'Window Open' is displayed on the multi-information display in the combination meter assembly.
      1. Warning start condition

        When either of the following conditions is met, the warning starts.

        • With the engine switch off, the driver door closed and any power window open*1, the driver door is opened.
        • With the engine switch on (IG), the driver door open and any power window open*2, the engine switch is turned off.
          1. *1: If the driver door power window is between the fully closed position and door-linked window control open position, it is judged as fully closed.
          2. *2: When a door is open, if the power window is in the door-linked window control open position, it is judged as fully closed.
    2. Check that 'Window Open' is no longer displayed on the multi-information display in the combination meter assembly if the warning stop conditions are met while the warning is operating. The warning buzzer stops sounding after the current cycle is finished.
      1. Warning stop condition

        When any of the following conditions is met, the warning stops.

        • All of the power windows are fully closed.*
        • The engine switch is turned on (IG).
        • The driver door is closed.
        • 30 seconds have elapsed since the warning buzzer started to sound.
          1. *: When a door is open, if the power window is in the door-linked window control open position, it is judged as fully closed.

        HINT:

        In the following situations, 'Window Open' may stop being displayed immediately after the warning starts. This is not a malfunction.

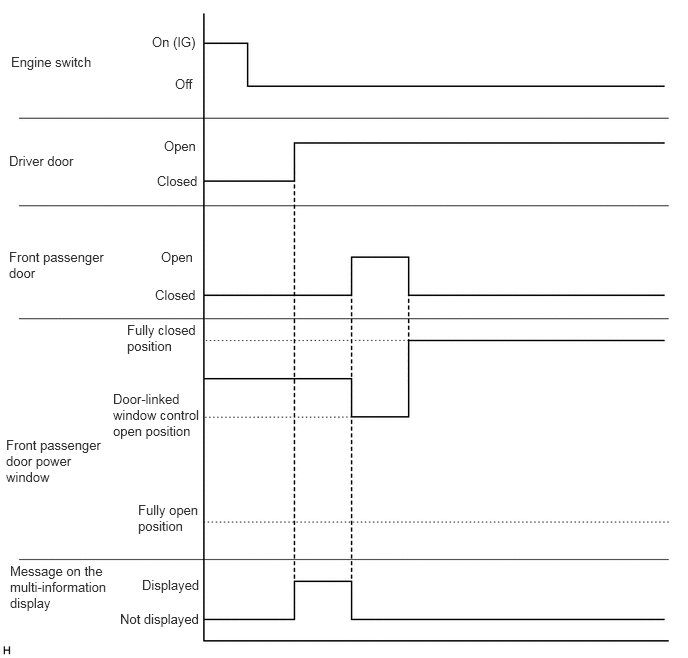

        • With the engine switch on (IG), all of the doors closed, the driver door power window closed and front passenger door power window between the fully closed position and door-linked window control open position, the engine switch is turned off (message not displayed), the driver door is opened (message displayed), then the front passenger door is opened immediately (message not displayed).
          GTY776134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

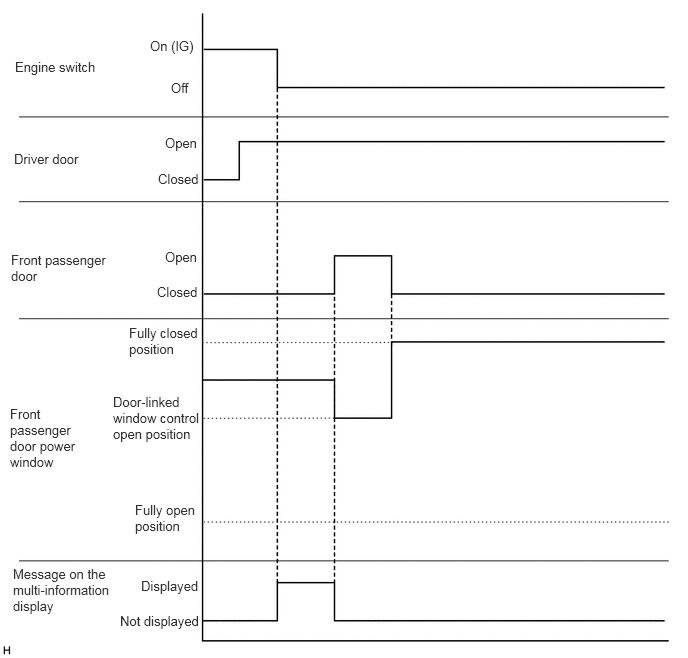

        • With the engine switch on (IG), all of the doors closed and the front passenger door power window between the fully closed position and door-linked window control open position, the driver door is opened (message not displayed), the engine switch is turned off (message displayed), then the front passenger door is opened immediately (message not displayed).
          GTY800838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. CHECK JAM PROTECTION FUNCTION
    1. Check the basic function.
      WARNING:

      Do not put your fingers between the door frame and door glass to check the jam protection function. Also, prevent any part of your body from being caught during inspection.

      Fig 2: Warning: Do Not Put Your Fingers Between The Door Frame And Door Glass
      GTY670808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The jam protection function is operative during both the auto up and manual up operations while the engine is running or the engine switch is on (IG), and also for approximately 43 seconds after the engine switch is turned off.

      1. Fully open the door window.
      2. Set a check jig wrapped with a piece of cloth near the window fully closed position.
        Fig 3: Check Jig Wrapped With A Piece Of Cloth
        GTY425456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Check Jig
        *b Cloth
      3. When an auto up or manual up operation is performed to fully close the door glass, check that the glass stops momentarily when it contacts the end of the hammer, lowers via a down operation and then stops.

        HINT:

        • If jamming occurs when the manual up operation is performed at each seat or when the manual up operation is performed using the all window switch, the window goes down approximately 25 mm (0.9843 in.) or more for approximately 5 seconds from the position where it jammed, and then stops.
        • If jamming occurs other than when the manual up operation is performed at each seat or when the manual up operation is performed using the all window switch, the window goes down approximately 125 mm (4.9213 in.) or more for approximately 5 seconds from the position where it jammed, and then stops.
        • The jam protection function does not operate when the manual up operation is performed at each seat within approximately 4 seconds after the jam protection function has operated when the auto up operation or manual up operation is performed at each seat.

          In addition, if the manual up operation is performed again using the all window switch within approximately 4 seconds after the manual up operation is performed using the all window switch and the quarter glass jam protection function operates, the quarter glass jam protection function does not operate again for that quarter glass.

        • The jam protection function does not operate when the manual up operation at each seat or remote manual up operation is performed after the catch protection function has operated. (At this time, the window does not operate in AUTO) In addition, if the manual up operation is performed using the all window switch after the quarter glass catch protection function operates using the all window switch, the quarter glass catch protection function does not operate again for that quarter glass.
      4. While the door glass is lowering, check that the switch of that door or the remote operation using the multiplex network master switch assembly cannot be used to raise the door glass.
  12. CHECK CATCH PROTECTION FUNCTION
    1. Check the basic operation.

      HINT:

      The catch protection function operates when the engine switch is on (IG), and when auto down and manual down are operated after the engine switch is turned off.

      Fig 4: Checking Catch Protection Function
      GTY480379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Fully close all door windows.
      2. While using auto down or manual down to open the window, grasp the upper edge of the door glass with one or two hands and check that the door glass operation stops.

        HINT:

        The catch protection function does not operate when the manual down operation is performed at each seat within approximately 4 seconds after the catch protection function has operated when the auto down operation or manual down operation is performed at each seat. In addition, if the manual down operation is performed using the all window switch within approximately 4 seconds after the quarter glass catch protection function operates using the all window switch, the quarter glass jam protection function does not operate for that quarter glass.

  13. DOOR-LINKED WINDOW CONTROL
    1. Open the driver door or front passenger door and check that the power window automatically moves down approximately 17 mm (0.669 in.).
    2. Close the driver door or front passenger door, and check that the power window automatically moves to the fully closed position.

      HINT:

      The door-linked window control will not operate if a power window is open more than approximately 17 mm (0.669 in.). However, in consideration of the backlash of the front door window regulator sub-assembly, if the power window is opened more than approximately 17 mm (0.669 in.) by the door-linked window control, and no other operations are performed, the power window will still automatically move to the fully closed position.

  14. CHECK POWER WINDOW SWITCH LED ILLUMINATION
    1. Check the LED illumination (multiplex network master switch assembly).

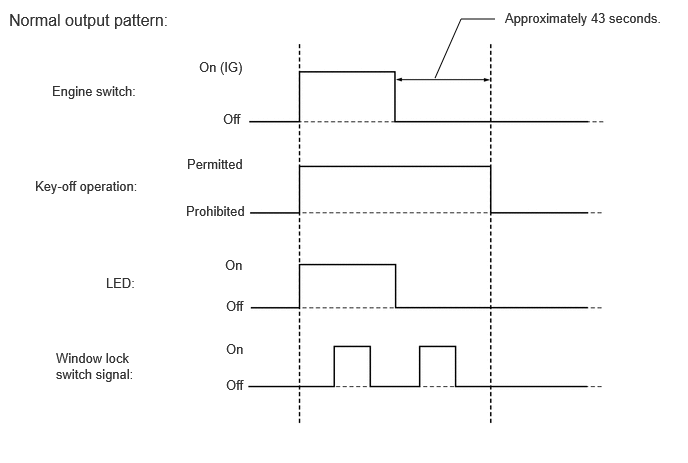

      1. Check that the LEDs located in the multiplex network master switch assembly illuminate when the engine switch is turned on (IG).
        GTY949164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Check that the LED located in the power window regulator switch assembly illuminates when the engine switch is turned on (IG).
  15. GROUP OPERATION CHECK OF ALL WINDOWS
    1. Turn the engine switch on (IG).
    2. Check that when the all window switch for the sliding roof switch assembly is operated to the UP side that the power windows (all glass panes) go up, and that when operated to the DOWN side, the power windows (all glass panes) go down.
    3. Check that when the all window switch for the sliding roof switch assembly is operated to the second step of the DOWN side that the power windows (all glass panes) perform AUTO DOWN operation, and the power windows (all glass panes) fully open.
    4. Check that when the window lock switch of the multiplex network master switch assembly is pressed, all power windows (all glass panes) are not operated at once.
